ADC BNC-25-N 75-Ohm Straight BNC Plug for VHD1100

ADCBNC25N - ADC BNC-25-N 75-Ohm Straight BNC Plug

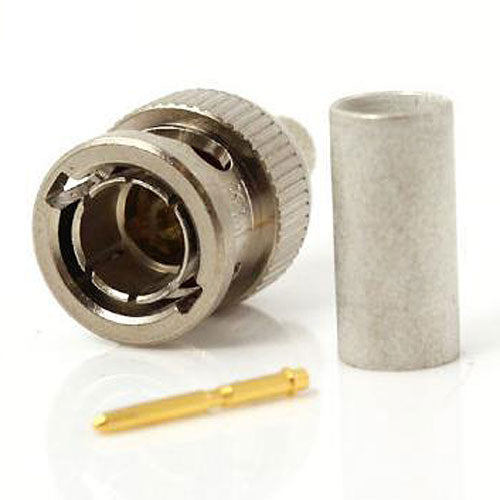

ADCs BNC-25-N is a straight BNC 75-Ohm plug connector, with notched bayonet, for 7731A, 5906, VHD1100, 89292 cable type. The connector offers improved performance with true 75-Ohm characteristic impedance through the entire connector, gold-plated locking center conductor, .625" crimp sleeve for greater pulloff force, and 100 percent guided mating.

ADCs straight BNC plug connector is compatible with competitive crimp tools and die sets. BNC plug connectors are universally accepted and are the most reliable method of terminating coaxial cable. They are designed to exceed the rigorous demands of todays broadcast environment, including SMPTE 259, 274, and 292 M standards.

Features:

Gold-plated locking (not captive) center conductor: Ensures proper alignment during termination, prevents damage during test or mating plug termination

Nickel plated body and bayonet: Tarnish-resistant

All ADC BNC connector plugs use the same crimp dimensions and crimp tools for the same cable type: Flexibility

In addition to the .042-inch square pin crimp, all connectors are compatible with a 12 point method of crimping or .042-inch Hex crimp: Compatibility
