AJA HA5 HDMI to SD/HD-SDI Video and Audio Converter

AJA HA5 HDMI to SD/HD-SDI Video and Audio Converter

AJAHA5

$345.00 USD
$345.00 USD
Sale Sold out
AJA HA5 HDMI to SD/HD-SDI Video and Audio Converter

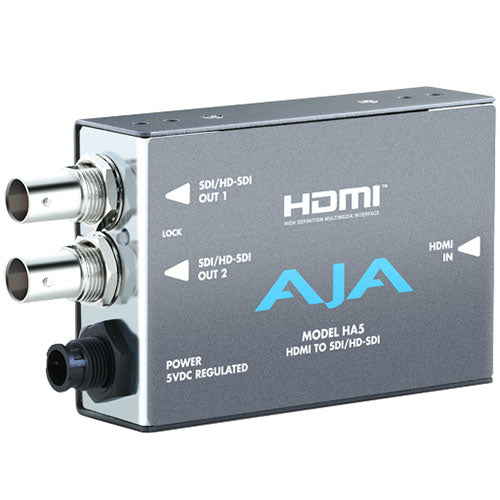

The AJA HA5 converts HDMI to SDI or HD-SDI. Up to eight channels of HDMI audio are embedded into the SD/HD-SDI output allowing a convenient single cable audio/video connection. The HA5 provides two SD/HD-SDI outputs and supports long HDMI cables on the input. The HA5 is useful for connecting HDMI cameras to SD/HD-SDI equipment.

AJA HA5 is small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector cant accidentally pull loose.

Features:

  • Full HDMI support including embedded audio
  • Equalized HDMI input supports long HDMI cables up to 40m
  • PLL clock filtering for low jitter SD/HD-SDI outputs
  • Lock LED shows type of input source, SD (green) or HD (red)
  • HDMI cable included
  • Ships with a Universal Power Supply that includes international plug connections for use around the world
  • 5 year warranty

    • Specifications:

  • Input: HDMI with embedded audio
  • Input Formats: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, and 1080p30
  • Outputs: SMPTE-259/292/296 SDI/HD-SDI, 2 x BNC
  • Power: +5VDC Regulated, 4 watts, Power Supply Required and included
  • Size: 4.6" x 2.4" x 1" (117 x 61 x 25mm)
    •
