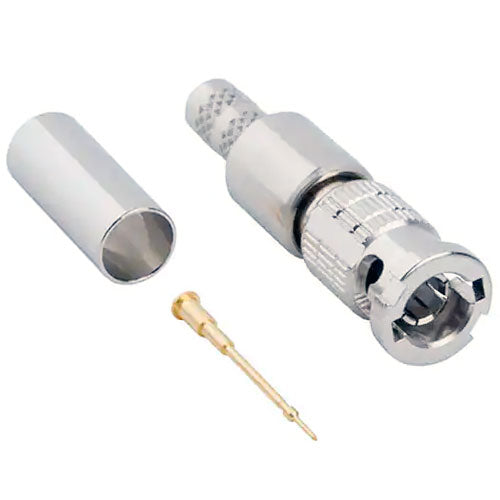

Amphenol 034-1026-12G 75-ohm Crimp Plug 12G HD-BNC Male Connector for Belden 1855A Cable

Amphenol 034-1026-12G 75-ohm Crimp Plug 12G HD-BNC Male Connector for Belden 1855A Cable

AMP034-1026-12G

$9.92 USD
$9.92 USD
Sale Sold out
Amphenol 034-1026-12G 75-ohm Crimp Plug 12G HD-BNC Male Connector for Belden 1855A Cable

Engineered to enhance electrical and mechanical performance, Amphenols HD-BNC connectors feature the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Amphenol 12G HD-BNC connectors deliver true 75-ohm performance.

Specifications:

  • Amphenol RF 034-1026-12G BNC Male Connector
  • Termination Style: Crimp
  • Impedence: 75-Ohm
  • Body Material: Brass
  • Body Finish: Nickel
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Insulator Material: PTFE
  • Cable Type: Belden 1855A, Belden 1865A, RG-122, RG-180, RG-180A, RG-180B, RG-195
  • Max Frequency (GHz): 18

    Appliations:

  • HD-SDI Broadcast
  • Military
  • Instrumentation
  • High-Density 12G BNC applications
    •
