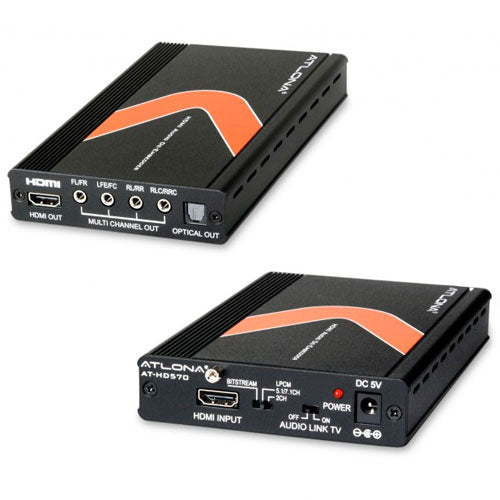

Atlona AT-HD570 HDMI Audio De-Embedder w/ 3D Support

ATLAT-HD570 - Atlona AT-HD570 HDMI Audio De-Embedder w/ 3D Support

Atlona HDMI Audio De-Embedder with 3D Support

The Atlona AT-HD570 is a professional quality HDMI Audio De-Embedder. Unit is capable of accepting an HDMI input signal and de-embedding the audio signal to either Optical or Multi-Channel analog audio outputs. This audio decoder supports uncompressed analog LPCM 7.1, 5.1, 2ch through the mulit-channel analog outputs with Dolby Digital, LPCM 2CH and DTS output through optical connection. Supports Dolby True HD and DTS HD Master Audio pass through HDMI connection

Key Features:

3D Capable

HDCP Compliant

Support CEC bypass

Supports digital video formats in Deep Color Mode from 25MHz to 6.75GHz for 36 bits

Supports high definition input up to 1080p

Video Pass-Through, no scaling

Supports HDMI signal amplification and equalization with reclocking function

Supports uncompressed digital audio formats LPCM 7.1, 5.1, 2ch through multi-channel analog outputs.

Supports Dolby TrueHD and DTS-HD Master Audio pass through HDMI output

Supports Dolby Digital, DTS 5.1, 2ch, and LPCM 2ch output through optical connection.

Integrated HDMI Booster and Repeater.

Technical Specifications

Input port: HDMI Female (type A)

Output port: HDMI Female (Type A): Optical (TosLink): 4 x 3.5mm Outs for Multi-Channel Audio

HDMI input/output audio format: LPCM 7.1, 5.1, 2ch and Bit stream Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS and DTS-HD Master Audio)

Optical Output audio format: Dolby Digital, DTS 5.1, 2ch and LPCM 2 channels

Multi-Channel audio format: LPCM 7.1/5.1/2 channels.

Operating Temperature: 0°C ~ 40°C

Power Supply: 5V/2.6A DC (110/220v)

Dimensions: 3.9(W) x 5.8(D) x 0.98(H) - inch

Weight: 0.8LB

Gross Weight: 2LB

Package Contents:

1 x AT-HD570 Audio De-Embedder

1 x 5V DC power supply adaptor

1 x User Manual
