Audio Accessories WEP-9615-SH 2x48 1.5RU Shorti Quick-Switch Patchbay to EDAC

Audio Accessories exclusive Quick-Switch normalling system offers exceptional flexibility. This 172" MINI (Bantam/TT) patchbay has the Tip, Ring, and Sleeve of each jack out to individual 3-Pin EDAC connectors. Then it’s mounted on the rear of a 3-inch deep SHORTI box, with a cabling support tray behind for bundling incoming cables.

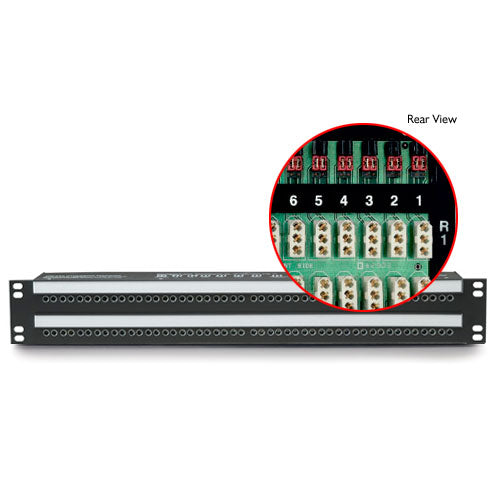

The Quick-Switch normalling pod (located on the rear of the unit) allows you to set the individual normals on a per jack-pair basis. This enables you to full-normal (FN), half-normal (HN), or non-normal (NN), individual bussed grounds (B) on a per-row basis. You can also have the unit share a common (bussed) ground, or the grounds can be vertically strapped (GVS).

To change any normal, simply pull the panel out from the front and move the Quick-Switch shunt to the desired setting.
