Audio-Technica ATW-1101/H92-TH System 10 2.4 GHz Digital Wireless Mic System w/ PRO 92cW Headworn Mic Beige

Audio-Technica ATW-1101/H92-TH System 10 2.4 GHz Digital Wireless Mic System w/ PRO 92cW Headworn Mic Beige

AUDATW-1101H92TH

$379.95 USD
$379.95 USD
Sale Sold out
AUDATW-1101H92th Audio-Technica ATW-1101/H92-th System 10 2.4 GHz Digital Wireless System w/ Pro 92cW Beige Headworn Mic

Audio-Technica’s ATW-1101/H92 System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

Audio-Technicas PRO 92cW wireless omnidirectional condenser headworn microphone offers a natural, smooth frequency response optimized for vocal articulation. The mic features a small condenser capsule: a lightweight, contoured earpiece: and a flexible boom that is easily repositioned for a comfortable fit. Terminated to fit Audio-Technica wireless systems.

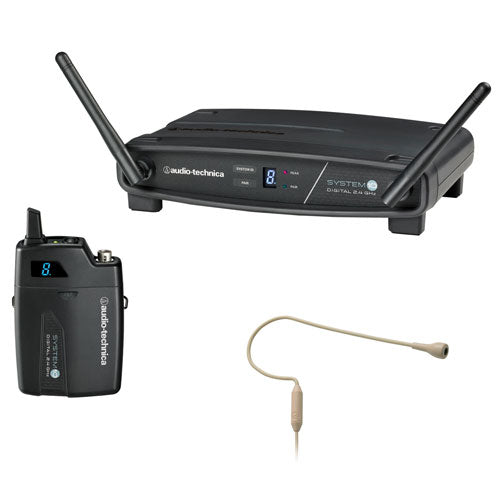

AWT-1101/H92 System 10 includes:

  • ATW-R1100 Receiver
  • ATW-T1001 UniPak Transmitter
  • Pro 92cW Headworn Microphone

    • System Features

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • 2.4 GHz range – completely free from TV interference
  • Three levels of diversity assurance: frequency, time, & space
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and set-up
  • State-of-the-art digital receiver for reliable performance
  • Balanced XLR and unbalanced 1/4” output jacks with level control

    • System 10 Overall Specifications:

  • Operating Frequencies: 2.4 GHz ISM band
  • Dynamic Range: >109 dB (A-weighted), typical
  • Total Harmonic Distortion: <0.05% typical
  • Operating Range: 30 m (100ft) typical
  • Open range environment with no interfering signals
  • Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
  • Frequency Response 20 Hz to 20 kHz - Depending on microphone type

    • ATW-R1100 Receiver Specifications:

  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level: XLR, balanced: 0 dBV: 1/4" (6.3 mm), unbalanced: +6 dBV
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
  • Dimensions: 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
  • Net Weight: 290 grams (10.2 oz)
  • Accessory Included Power supply

    • ATW-T1001 Body-Pack Transmitter Specifications:

  • RF Power Output: 10 mW
  • Spurious Emissions: Following federal and national regulations
  • Input Connections: Four-pin Locking Connector: Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
  • Batteries: Two 1.5V AA not included
  • Battery Life: >7 hours (alkaline), Depending on battery type and use pattern
  • Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
  • Net Weight: 100 grams (3.5 oz) without batteries

    • Pro 92cW Headworn Mic Specification

  • Comfortable headset is ideal for lecturers and other applications requiring clear, articulate vocal projection.
  • Color: Beige
  • Element: Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20-20,000 Hz
  • Cable: 55" (1.4 m), terminated for use with Audio-Technica UniPak®body-pack transmitters
    •
