AUDATW-801H Audio-Technica ATW-801/H System 8 VHF Wireless System - PRO 8HEcW Headworn Mic
ATW-801/H System 8 Wireless Headworn System List Price: $249.95
Easy setup & clear, natural sound! Featuring sleek, stackable, contemporary styling, Audio-Technicas System 8 Wireless Systems are designed for reliable performance, easy setup and clear, natural sound quality. Available in handheld, headworn, guitar, lavalier and body-pack configurations, these single-channel, fixed-frequency systems are available in three traveling VHF frequencies (169.505, 170.245, and 171.905 MHz).

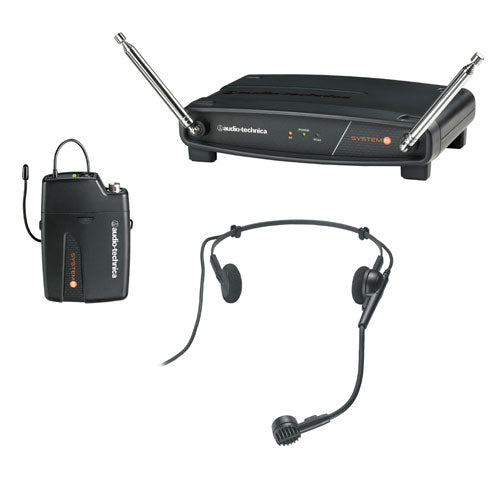

AWT-801/H System 8 for Headworn Mic Includes:
ATW-R800 Receiver
ATW-T801 Body-Pack Transmitter
PRO 8HEcW Headworn Hypercardioid Dynamic Microphone
ATW-801 Features
Easy operation and clear, natural sound quality
Reliable performance and durable construction
Advanced dipole antenna system for extended operating range
Power, RF, and AF Peak indicators
Volume control, 1/4" output jack and user-adjustable squelch
Rugged unidirectional dynamic element on handheld microphone/transmitter
Variable microphone trim control and multi-color battery/power indicator, AA operation on transmitters
Professional locking connector on UniPak® body-pack transmitter
Available in 7 system configurations
System 8 Overall Specifications:
Operating Frequency: VHF highband, 169 MHz to 172 MHz
Modulation Mode: FM
Maximum Deviation: +/-10 kHz
Dynamic Range: >/=90 dB (A-weighted), typical
Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
Operating Range: 200 (60 m) typical (Open range environment with no interfering signals)
Operating Temperature Range: 40° F (4° C) to 110° F (43° C) (Battery performance may be reduced at very low temperatures)
Frequency Response: 80 Hz to 13 kHz
ATW-R800 Receiver Specifications:
Receiving System: Non-diversity, single-channel, dual antenna system
Image Rejection: 50 dB minimum
RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
