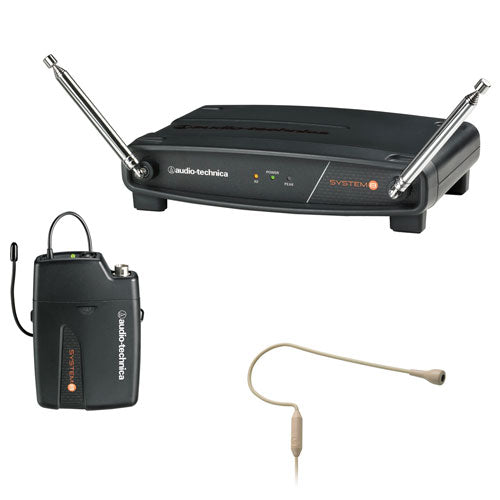

AUDATW-801H92TH Audio-Technica ATW-801/H92-TH System 8 VHF Wireless System - PRO 92cW Headworn Mic - BeigeATW-801/H92-TH System 8 Wireless Headworn System List Price: $324.95
Easy setup & clear, natural sound! Featuring sleek, stackable, contemporary styling, Audio-Technicas System 8 Wireless Systems are designed for reliable performance, easy setup and clear, natural sound quality. Available in handheld, headworn, guitar, lavalier and body-pack configurations, these single-channel, fixed-frequency systems are available in three traveling VHF frequencies (169.505, 170.245, and 171.905 MHz).
Audio-Technicas PRO 92cW wireless omnidirectional condenser headworn microphone offers a natural, smooth frequency response optimized for vocal articulation. The mic features a small condenser capsule: a lightweight, contoured earpiece: and a flexible boom that is easily repositioned for a comfortable fit. Terminated to fit Audio-Technica wireless systems, the PRO 92cW is available in black or beige.
AWT-801/H92-TH System 8 for Headworn Mic Includes:
ATW-R800 ReceiverATW-T801 Body-Pack TransmitterPRO 92cW Headworn Omnidirectional Condenser Microphone - BeigeATW-801 Features
Easy operation and clear, natural sound qualityReliable performance and durable constructionAdvanced dipole antenna system for extended operating rangePower, RF, and AF Peak indicatorsVolume control, 1/4" output jack and user-adjustable squelchRugged unidirectional dynamic element on handheld microphone/transmitterVariable microphone trim control and multi-color battery/power indicator, AA operation on transmittersProfessional locking connector on UniPak® body-pack transmitterAvailable in 7 system configurationsSystem 8 Overall Specifications:
Operating Frequency: VHF highband, 169 MHz to 172 MHzModulation Mode: FMMaximum Deviation: +/-10 kHzDynamic Range: >/=90 dB (A-weighted), typicalTotal Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)Operating Range: 200 (60 m) typical (Open range environment with no interfering signals)Operating Temperature Range: 40° F (4° C) to 110° F (43° C) (Battery performance may be reduced at very low temperatures)Frequency Response: 80 Hz to 13 kHzATW-R800 Receiver Specifications:
Receiving System: Non-diversity, single-channel, dual antenna systemImage Rejection: 50 dB minimumRF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)Audio Output: 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), nominalPower Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supplyDimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) DNet Weight: 11.8 oz (335 grams)Accessory Included: Power supplyATW-T801 Body-Pack Transmitter Specifications:
RF Power Output 10 mWSpurious Emissions: Following federal and national regulationsInput Connections: Four-pin Locking ConnectorPin 1: GND: Pin 2: INST INPUT: Pin 3: MIC INPUT, Pin 4: DC BIAS +9VBatteries: Two 1.5V AA not includedBattery Life: 8 hours (alkaline), Depending on battery type and use patternDimensions 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) DNet Weight: 3.0 oz (84.5 grams)(without battery)PRO 92cW Headworn Microphone Specifications:
Omnidirectional Condenser Headworn MicrophoneComfortable headset is ideal for lecturers and other applications requiring clear, articulate vocal projectionFlexible, contoured earpiece hooks over either ear for a comfortable fitNatural smooth frequency response optimized for vocal articulationRugged construction designed to stand up to the challenges of day-to-day useIncludes storage pouch, clothing clip, and windscreenColor: BeigeTerminated with locking 4-pin connector for A-T UniPak® body-pack wireless transmittersLength: 55" (1.4 m)
