Audio-Technica ATW-802 System 8 Wireless System Handheld Transmitter

Audio-Technica ATW-802 System 8 Wireless System Handheld Transmitter

AUDATW-802

$99.95 USD
$99.95 USD
Sale Sold out

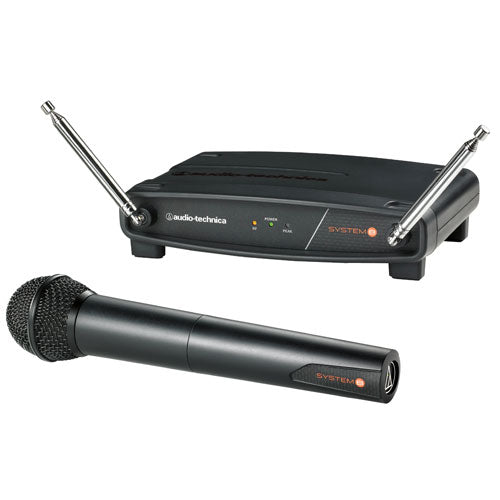

AUDATW-802 Audio-Technica ATW-802 System 8 Wireless System Handheld Transmitter

ATW-802 System 8 Wireless Handheld Transmitter System List Price: $174.95

Easy setup & clear, natural sound! Featuring sleek, stackable, contemporary styling, Audio-Technicas System 8 Wireless Systems are designed for reliable performance, easy setup and clear, natural sound quality. Available in handheld, headworn, guitar, lavalier and body-pack configurations, these single-channel, fixed-frequency systems are available in three traveling VHF frequencies (169.505, 170.245, and 171.905 MHz).

AWT-802 System 8 Handheld Mic/Transmitter Includes:

  • ATW-R800 Receiver
  • ATW-T802 Handheld Mic / Transmitter
  • AT8456a Quiet-Flex stand clamp

    • ATW-802 Features

  • Easy operation and clear, natural sound quality
  • Reliable performance and durable construction
  • Advanced dipole antenna system for extended operating range
  • Power, RF, and AF Peak indicators
  • Volume control, 1/4" output jack and user-adjustable squelch
  • Rugged unidirectional dynamic element on handheld microphone/transmitter
  • Variable microphone trim control and multi-color battery/power indicator, AA operation on transmitters
  • Professional locking connector on UniPak® body-pack transmitter
  • Available in 7 system configurations

    • System 8 Overall Specifications:

  • Operating Frequency: VHF highband, 169 MHz to 172 MHz
  • Modulation Mode: FM
  • Maximum Deviation: +/-10 kHz
  • Dynamic Range: >/=90 dB (A-weighted), typical
  • Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
  • Operating Range: 200 (60 m) typical (Open range environment with no interfering signals)
  • Operating Temperature Range: 40° F (4° C) to 110° F (43° C) (Battery performance may be reduced at very low temperatures)
  • Frequency Response: 80 Hz to 13 kHz

    • ATW-R800 Receiver Specifications:

  • Receiving System: Non-diversity, single-channel, dual antenna system
  • Image Rejection: 50 dB minimum
  • RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
  • Audio Output: 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), nominal
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
  • Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
  • Net Weight: 11.8 oz (335 grams)
  • Accessory Included: Power supply

    • ATW-T802 Handheld Mic / Transmitter Specifications:

  • Dynamic Unidirectional Microphone
  • RF Power Output 10 mW
  • Spurious Emissions: Following federal and national regulations
  • Batteries: Two 1.5V AA not included
  • Battery Life: 8 hours (alkaline), Depending on battery type and use pattern
  • Dimensions 9.91" (251.8 mm) long, 2.11" (53.5 mm) diameter
  • Net Weight: 9.2 oz (260 grams)(without battery)
  • Accessory Included: AT8456a Quiet-Flex™ stand clamp
    •
