AVP AV Combo Patchbay 2RU 16 AMN75 24 AMBFNE03

AVP AV Combo Patchbay 2RU 16 AMN75 24 AMBFNE03

AVPAMDBS2LAMN75AMBFNE03

$2,093.33 USD
$2,093.33 USD
Sale Sold out

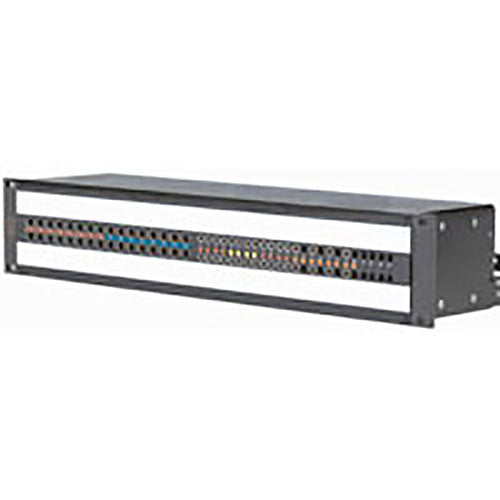

AVP AM-DBS2-L-AMN75/AM-B-FN-E03 SuperHD+ Series HD Audio/Video Combo Patchbay 2RU

Application:
  • Video: HDTV, serial digital, analog.
  • Audio: AES/EBU digital &: analog
  • Perfect for non-linear edit suites
  • With the RS422 module, panel functions as a passive edit suite router for video, audio and machine control combined into one jackfield

    • Panel Features:
  • CIS - Circuit Identification System allows color-coding of each circuits function, available in 10 colors
  • Video and audio jacks are front mounted, featuring captive screws, simplify system redesign and maintainance
  • Heavy-duty pivoting cable bar
  • Jackfield shipped with crimp-pin mating connector kit and captive hex key

    • Video Features:
  • 16 SuperHD+ 3.0GHz midsize dual video jack positions
  • Jacks exceed SMPTE 424M specifications
  • Life cycle rating of 30,000
  • AMN75 Normalled Terminating Video Jacks
  • Find Midsize Video Patchcords Here

    • Audio Features:
  • 24 bantam audio jack positions with stereo spacing
  • AVP Morph Audio System
  • AM-B-FN-E03 2x24 dual full normal Morph audio modules installed
  • Modules are terminated with EDAC/ELCO 3-pin interface
  • Life cycle rating of 30,000
  • Find Bantam Audio Patchcords Here

    • RS422 Features:
  • Rigid 4 layer, 2 board construction, eliminates cross-talk between adjacent channels
  • Keyed jacks and patchcords prevent inadvertant cross-patching
    •
