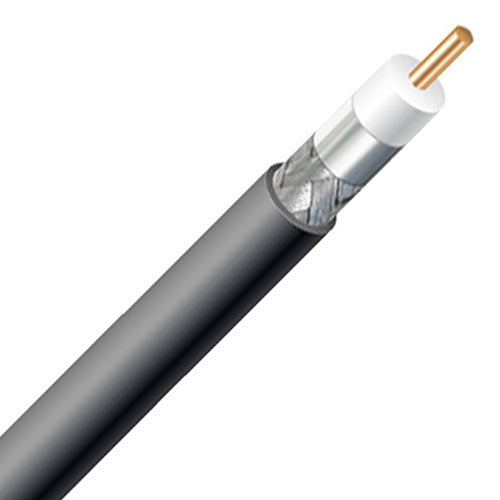

Belden 1694WB 18 AWG Flooded RG-6/U Low-Loss SDI Video Coax 1000 Foot

Belden 1694WB 18 AWG Flooded RG-6/U Low-Loss SDI Video Coax 1000 Foot

BEL1694WBBLA-1000

$633.07 USD
$633.07 USD
Sale Sold out
Belden 1694WB 18 AWG Flooded RG-6/U Low-Loss Serial Digital Video Coax Black 1000 Foot

Belden 1694WB 18 AWG solid .040" bare copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil® plus tinned copper braid shield (95% coverage), flooding compound, PE jacket.

Features:
  • Conductor: 18 AWG Solid BC - Bare Copper
  • Insulation Material: Gas-injected FHDPE - Foamed High-Density Polyethylene
  • Outer Shield Material: Duofoil® Aluminum Foil-Polyester Tape-Aluminum Foil 100%, plus TC - Tinned Copper Braid (95%)
  • Outer Jacket: PE Polyethylene
  • Overall Cable Diameter: 6.960 mm (0.274 inches)
  • RG Type: 6/U
  • Suitability - Burial: YES
  • Sunlight Resistance: YES
  • Impedance: 75 Ohm
  • Nom. Capacitance Conductor to Shield: 53.1522 pF/
    •
