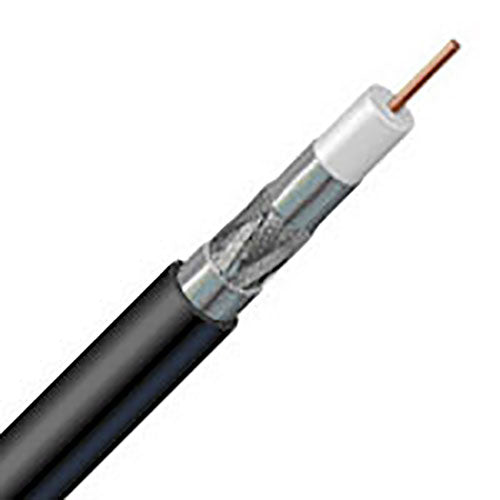

Belden 1794A 16AWG Low Loss HD-SDI Video Coax 1000 FT

Belden 1794A 16AWG Low Loss HD-SDI Video Coax 1000 FT

BEL1794ABLA-1000

$954.25 USD
$954.25 USD
Sale Sold out
Belden 1794A 16AWG Low Loss HD-SDI Video Coax 1000 FT

Belden 1794A is an RG7 16 AWG precision low loss HD-SDI Coax, great for SMPTE 424M 3 Gb/s 1080p transmission. Belden 1794A features a solid 0.051" bare copper conductor with gas injected foamed high-density polyethylene insulation. Duofoil + tinned copper braid shield (95%) plus Beldfoil with shorting fold, all in a PVC Jacket.

Features and Specifications:

  • Belden 1794A RG7 16 AWG 75-Ohm Precision Video Coax Cable
  • Conductor: 16 AWG Solid BC - Bare Copper, 0.051 in.
  • Insulation: Gas-injected FHDPE - Foam High Density Polyethylene, 0.225 in.
  • Outer Shield: 1. Duofoil Tape, Aluminum Foil-Polyester Tape-Aluminum Foil, 100% Coverage: 2. Braid TC - Tinned Copper 95% Coverage: 3. Beldfoil Tape with shorting fold - Polyester Tape - Aluminum Foil material, 100% coverage
  • Outer Jacket Material - PVC Polyvinyl Chloride
  • Overall Nominal Diameter: 0.320 inch
  • Bulk Cable Weight: 60 lbs/1000 ft
  • Max Recommended Pulling Tension: 111 lbs
  • Min. Bend Radius/Minor Axis: 3.250 in.
  • Applicable Agency Compliance: NEC(UL) Spec - CMR: CEC(UL) Spec - CMG: EU ROHS - Yes: Series Type 7
  • Plenum (Y/N): N
  • Nom. Characteristic Impedance: 75 Ohm
  • Jacket Color: Black

    • Belden Maximum Distance by Video Format Chart
