Belden 2183P 4K UHD Media Cable, CMP Plenum, Black 1000 FT Box

Belden 2183P 4K UHD Media Cable, CMP Plenum, Black 1000 FT Box

BEL2183PBLA-1000

$1,476.35 USD
$1,476.35 USD
Sale Sold out

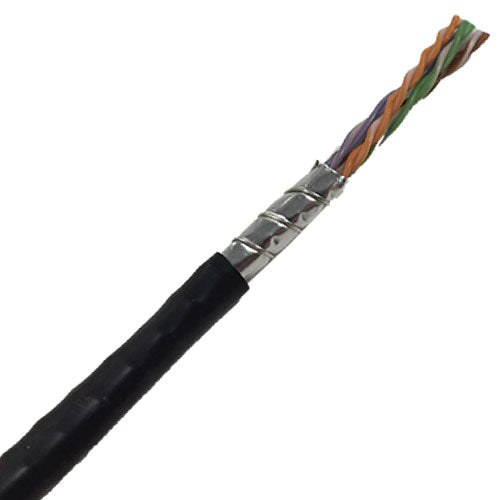

Belden 2183P 4K Ultra-High-Definition Media Cable, CMP Plenum, Black, 1000 FT Box

Belden 2183P cable is designed specifically for optimal performance in 4K HDBaseT transmission. This shielded CMP plenum rated cable delivers 4K content over 100 meters in a unique, small, sleek design. Combined with either standard field-mount plugs or Belden’s new REVConnect connectivity system, it is an easy to install, reliable HDBaseT cabling solution.

Features and Benefits

  • Construction: 4 twisted pairs F/UTP
  • 23 AWG solid bare copper conductors
  • Overall corrugated flex shield
  • Tinned copper helical drain wire and rip cord
  • Pull Tension: 45 lbs
  • Solid PEF Insulation, Flamarrest Jacket
  • Nominal O.D. - 0.260 inches (6.6 mm)
  • Bend radius: 1.0 inches (25.4 mm)
  • Flame rating: FT6
  • Resistant to rigors of installation with Bonded-Pair, durable shield and helical drain
  • Tested to 500 MHz
  • Up to 25% smaller than Category 7a
  • Easy to bend and fit into small spaces
  • Designed and tested specifically for optimal 4K UHD performance
  • 100% shielding provides protection from noise interference with AV signal
  • Single overall shield construction saves significant termination time
  • UL Limited Power (LP) rated to 0.6A per conductor
  • Interoperable with leading manufacturers AV equipment

    • Key Applications

  • HDBaseT 4K UHD 100 Meters
  • Supports HDBaseT 5Play
  • 100W Power over HDBaseT (PoH), and Power over Ethernet (PoE)
  • 2183P rated CMP for plenum installation
    •
