Belden 4505R 12GHz 4K UHD 75-Ohm 20 AWG Precision Video Cable 1000 FT

Belden 4505R 12GHz 4K UHD 75-Ohm 20 AWG Precision Video Cable 1000 FT

BEL4505RBLA-1000F

$913.75 USD
$913.75 USD
Sale Sold out

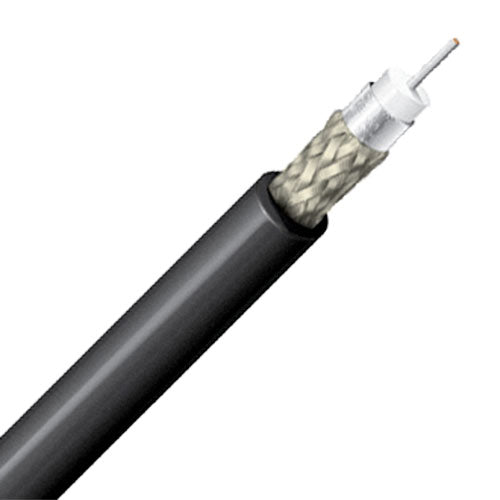

Belden 4505R 12G-SDI 4K UHD Video Cable, 75-Ohm RG-59, 20 AWG Solid, Black, 1000 FT

Belden 4505R is rated for 12 GHz 4K UHD 75-Ohm video coax transmission. 4505R RG59 coax features 20 AWG solid 0.032" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duobond II Tri-Laminate Outer Shield (100% coverage, Alum+Poly+Alum) and tinned copper braid shield (95% coverage), with PVC jacket construction.

Belden 4505R is a great cable for any environment where 4K images need to be, including broadcast vans/trucks, ENG camera teams, houses of worship, classrooms, boardrooms, and home theater installations. Belden 4505R delivers fantastic Ultra High Definition video images anywhere you need. (SMPTE 2082-1 12 Gb/s UHDTV - 208 FT)

Features and Specifications:

  • Belden 4505R 12 GHz 4K UHD 75-Ohm Precision Video Coax Cable
  • Conductor: 20 AWG Solid SPC - Silver Plated Copper, 0.023 in.
  • Insulation: Gas-injected FHDPE - Foam High Density Polyethylene, 0.145 in.
  • Outer Shield: 1. Duobond II, Tri-Laminate (Alum+Poly+Alum) 100% Coverage: 2. Braid TC - Tinned Copper 95% Coverage
  • Outer Jacket Material - PVC Polyvinyl Chloride
  • Overall Nominal Diameter: 0.233 inch
  • Bulk Cable Weight: 31 lbs/1000 ft
  • Max Recommended Pulling Tension: 52 lbs
  • Min. Bend Radius/Minor Axis: 2.3 in.
  • Suitable Applications: SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P

    • Transmission Distances by Format:

  • 3 Gb/s Single Link, SMPTE ST 425-4, UHDTV1, UHDTV2 : 433 Ft. (132 M)
  • 6 Gb/s Single Link, SMPTE ST 2081-1, UHDTV1, UHDTV2 : 302 Ft. (92 M)
  • 12 Gb/s Single Link, SMPTE ST 2082-1, HDTV1, UHDTV2 : 208 Ft. (63 M)
    •
