Belden 7825P Composite HD Camera Electrical Cable, Plenum - Black, 1000 FT

Belden 7825P Composite HD Camera Electrical Cable, Plenum - Black, 1000 FT

BEL7825PNAT-1000

$1,136.66 USD
$1,136.66 USD
Sale Sold out
Belden 7825P Composite HD Camera Electrical Cable, Plenum - Black, 1000 FT

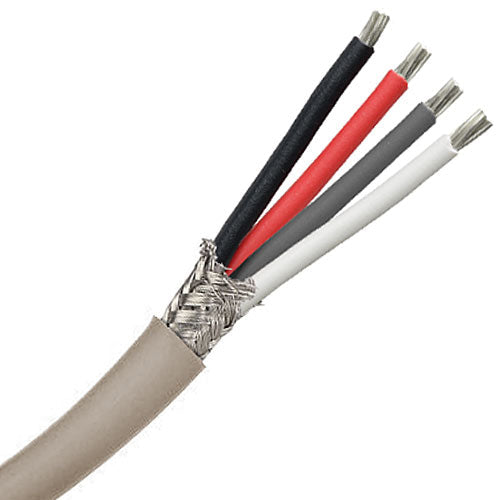

Belden 7825P Composite HD Camera Electrical Cable consists of 2 - 16AWG conductors, and 2 - 22AWG conductors, and is UL CMP Plenum Rated.

Belden 7825P:

  • 2 - 16 AWG, 19x29 stranded TC - Tinned Copper conductors
  • 2 - 22 AWG, 7x30 stranded TC - Tinned Copper conductors
  • Insulation Material (all conductors) - Flamarrest(R) LS PVC - Low Smoke Polyvinyl Chloride
  • Insulation Color Coding: Red 22AWG: Gray 22AWG: Black 16AWG: White 16AWG
  • Nominal Conductor DCR: 22 AWG - 17.5 Ohms/km
  • Nominal Conductor DCR: 16 AWG - 4.5 Ohms/km
  • Nominal Outer Shield DCR: 2.8 Ohms/km
  • Outer Shield Material - 95% coverage TC - Tinned Copper Braid
  • Outer Jacket Material: Flamarrest(R) LS PVC - Low Smoke Polyvinyl Chloride
  • Overall Nominal Diameter: .212 in.
  • NEC(UL) Specification: CMP
  • Other Specification: SMPTE311
  • Outer Jacket Color: Natural
  • Non-Plenum part number is 7825R
    •
