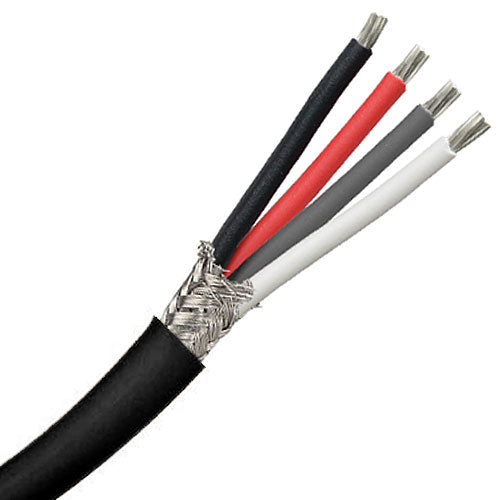

Belden 7825R Composite HD Camera Electrical Cable - Black, 1000 FT

Belden 7825R Composite HD Camera Electrical Cable - Black, 1000 FT

BEL7825RBLA-1000

$975.00 USD
$975.00 USD
Sale Sold out
Belden 7825R Composite HD Camera Electrical Cable - Black, 1000 FT

Belden 7825R Composite HD Camera Electrical Cable consists of 2 - 16AWG conductors, and 2 - 22AWG conductors, and is UL CMR Riser Rated.

Belden 7825R:

  • 2 - 16 AWG, 19x29 stranded TC - Tinned Copper conductors
  • 2 - 22 AWG, 7x30 stranded TC - Tinned Copper conductors
  • Insulation Material (all conductors) - PVC Polyvinyl Chloride
  • Insulation Color Coding: Red 22AWG: Gray 22AWG: Black 16AWG: White 16AWG
  • Nominal Conductor DCR: 22 AWG - 57.418 Ohms/km
  • Nominal Conductor DCR: 16 AWG - 14.765 Ohms/km
  • Nominal Outer Shield DCR: 9.187 Ohms/km
  • Outer Shield Material - 95% coverage TC - Tinned Copper Braid
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Nominal Diameter: 6.350mm (0.25 in.)
  • NEC(UL) Specification: CMR
  • Other Specification: SMPTE311
  • Plenum part number is 7825P
    •
