Transmit your digital video within television facilities and between professional audio equipment over inexpensive twisted-pair cable.

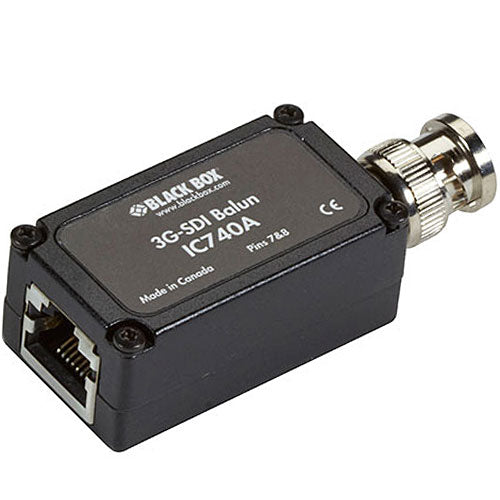

Save on cable costs with the Black Box IC740A HD-SDI Balun! Choose CAT5 UTP cable for point-to-point digital video instead of coax cable. Use inexpensive UTP cable instead of bulky coax to extend the distance between digital video devices. This tiny balun allows audio equipment to be connected or moved within a structured cabling environment. Transmit uncompressed, unencrypted digital video up to 150 feet (45 m) via unshielded copper twisted pair (UTP) in a point-to-point connection.
Use the IC740A balun in video production, broadcasting, HD camcorder, studio-to-studio, post-production, live events, medical imaging displays, mobile video, HD/SD routing, HD-CCTV, and medical imaging applications.
Features and Specifications:
Links HD-SDI video equipment, including HD-SDI camcorders, HDCCTV cameras, and more up to 150 feet (45 m) apart using inexpensive UTP cable instead of coax cable.
Lightweight and compact—fits next to HD-SDI equipment
Extend the distance between input and output devices up to 150 feet (45 m)
Must be used in identical pairs
Supports digital video, optionally including embedded auto and/or time code) within television facilities and between professional audio equipment.
Use the balun in video production, broadcasting, HD camcorder, studio-to-studio, post-production, live events, medical imaging displays, mobile video, HD/SD routing, HD-CCTV, and medical imaging applications.
Guaranteed for life!
Connectors: (1) RJ-45, (1) BNC male
Interface: SDI (SD, HD, or 3G), HD-SDI
Distance: For resolution 720p and 1080i (HD speed)*: Up to 100 ft. (30 m), maximum, using CAT5 UTP: Up to 150 ft. (45 m), maximum, for CAT5e and 6 UTP
Dimension: 1.85"H x 1.05"W x 0.8"L (4.7 x 2.7 x 2 cm)
NOTE: Maximum distance is function of the receiving equipment equalizer and cables. Dedicated Cat5e/6 cables are recommended. Patch panels, patch cables and wallplate interconnect are not recommended. Will not work with STP cable.
* Please note that many new equipment that are referring to HD-SDI are using the 3G speed. The balun is not recommended for this speed.
