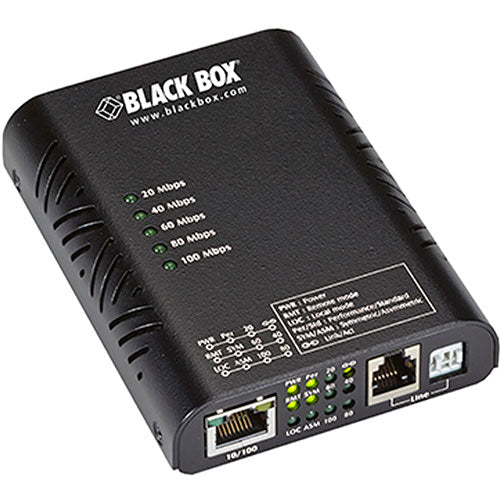

Black Box LB320A Industrial Ethernet Extender - 10/100, 1-Port
Point-to-point and plug-and-play - the simple way to send your LAN at up to 100 Mbps over copper
10BASE-T/100BASE-TX Ethernet Extenders use vDSL to provide an easy, inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire or coax cable. Just plug an extender into each end of your copper wire and use simple DIP switches to set one unit as local (CO) and the other as remote (CP) — there’s never any software to install. Plus, the RJ-45 port autosenses speed and duplex and features MDI/MDI-X for easy cabling.
NOTE: Must be used in pairs. An RJ-11 cable is required to link the pair, please call for RJ-11 Cable pricing (dependent on length needed)
Features and Specifications:
Save wiring costs by using voice-grade copper wire—even phone wire you already have installed
Extends 10- or 100- Mbps Ethernet up to 1.6 miles (2.6 km) at 1 Mbps and up to 300 meters at 100 Mbps
Perfect for connecting an isolated user in another building or in another part of a large building
Symmetrical VDSL supports speeds of up to 100 Mbps
Transparent to network protocols
Six speeds with easy-to-read speed indicator LEDs on top of the extender
Ethernet ports are Auto MDI/MDI-X and autosensing for speed and duplex
Connectors: Ethernet Port: (1) 10/100BASE-TX port: Ethernet Extender Port: (1) RJ-11 and terminal block port
Data Rates: 100 Mbps at 960 ft. (300 m): 80 Mbps at 1280 ft. (400 m): 60 Mbps at 1920 ft. (600 m): 40 Mbps at 2560 ft. (800 m): 20 Mbps at 3840 ft (1200 m): 1 Mbps at 8320 ft. (2600 m)
Power: Input: 12 VDC (DC jack): Consumption: 4.2 W maximum.
Power Supply Included
Dimensions (each unit of pair): 0.94"H x 3.16"W x 4.3"D (2.38 x 8.03 x 10.9 cm)
NOTE: This product is not backwards compatible with the Black Box LB300A, due to it operating on a new protocol.
