CanaBridge CB-1010 3G-SDI Fiber Optic Extender Kit

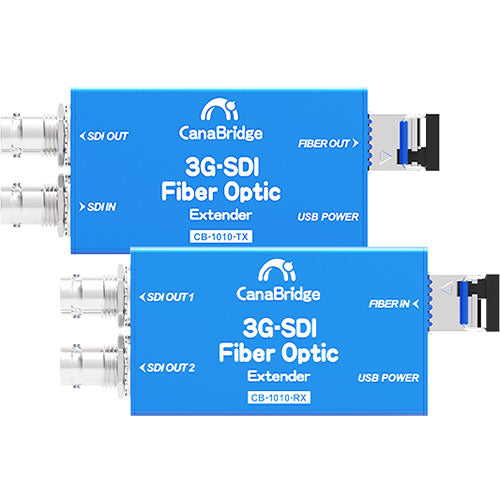

The CanaBridge CB-1010-TX/RX 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extending up to 20km.

CB-1010 is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p with audio and metadata, also supports level A and level B.

CB-1010 features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD-SDI signals. Multimode fiber can also be used but for shorter distances.

Features:

  • 20km transmission distance over single mode simplex fiber
  • Support 3Gbit Level A and Level B (all formats)
  • SFP/LC Fiber Transmitter and Receiver
  • SDI equalization and re-clocking
  • 3G-SDI input and loopout on Transmitter
  • Dual 3G-SDI outputs on Receiver
  • SDI input automatic switching SD, HD, & 3G
  • USB power supply

  • 120m SDI Equalization & Re-clocking:
    Equalized on the SDI input and recloking on the SDI outputs to maximize performance up to 120m for 3G and 140m for HD-SDI. It ensures transmission quality and effect of eye diagram, and fully compatible with 3G level A & level B formats.

    • Specifications:

  • Connections:
    Transmitter SDI Video Input: 1x SD/HD/3G-SDI (75-ohm BNC)
    Transmitter SDI Loop Output: 1x SD/HD/3G-SDI (75-ohm BNC)
    Transmitter Fiber Optic Output: SFP module with LC Connector
    Receiver Fiber Optic Input: SFP module with LC Connector
    Receiver SDI Video Output: 2x SD/HD/3G-SDI (75-ohm BNC)
    Micro USB: Power and software update
    Power LED Indicator: Power and signal status
  • SDI Video Rate: 3G-SDI/HD/SD
  • SDI Standard: SMPTE ST259: SMPTE ST 292-1: SMPTE ST 424: DVB-ASI
  • SDI Auto Switching: Automatically detects SD, HD, and 3G-SDI
  • SDI Equalization and Re-clocking: Yes, SDI Input and output maximize performance up to 120m for 3G-SDI
  • SDI Audio: Supports 16-channel embedded
  • Optical Connector: LC
  • Optical Fiber Type: Single-mode
  • Optical wavelength: 1310nm
  • Optical Output power: -6 ~ 0dBm
  • Optical Receiver Sensitivity: -15dBm (Max)
  • Power: Micro USB
  • Power Consumption: 1.5W (Max)
  • Voltage Range: USB 3.3-5.5V
  • Dimensions (each): 72.4 x 41 x 24.6mm
  • Net Weight: Transmitter 115g: Receiver 115g
  • Gross Weight Kit: 750g
  • Operating Temperature: 0 ~40 deg C
  • Storage Temperature: -10~70 deg C
  • Relative Humidity: 0%~90% non-condensing

    • Whats Included:

  • CB-1010-TX (3G-SDI Fiber Optic Extender Transmitter)
  • CB-1010-RX (3G-SDI Fiber Optic Extender Receiver)
  • 2pairs DC 5V Universal Power Supply with 5 International Socket Adapters
  • 2pcs USB Cables
  • 2pcs Mounting Brackets with 8 screws (12g/pcs)
    •
