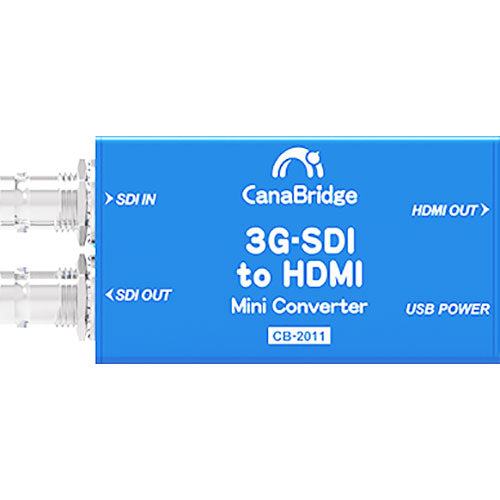

CanaBridge CB-2011 3G-SDI to HDMI Mini Video Converter

CanaBridge CB-2011 3G-SDI to HDMI Mini Video Converter

CB-2011 is an exquisite and portable SDI to HDMI converter. With micro USB power supply, convenient and detachablemounting bracket, CB-2011 is the best choice for outdoors and indoors. With 3G-SDI input and SDI loop-out, CB-2011can auto detect SD/HD/3G-SDI signal up to 1080p60, and support both Level A and Level B. HDMI Type-A output iscompatible for more consumer electronics such as HDMI Television, projector, VCR, etc.

Specifications:

Connections:

SDI Video Input: 1 × SD/HD/3G-SDI (75O BNC)

SDI Video Loop Output: 1 × SD/HD/3G-SDI (75O BNC)

HDMI Video Output: 1 × HDMI A

Multi Rate Support: Auto Detect SD/HD/3G-SDI

Micro USB: Power and software update

Power LED: Power indicator

SDI LED: SDI input signal indicator

Functions and Standards:

SDI Input Format:
1080p 50/59.94/60
1080p 23.98/24/25/29.97/30
1080psf 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
525i 59.94, 625i 50

SDI Auto Switching: Automatically detects SD, HD and 3G-SDI

SDI Video Rate: SD/HD/3G-SDI

SDI Color Space and Precision: YCbCr 4: 2: 2

SDI Standard: SMPTE ST 259: SMPTE ST 292-1: SMPTE ST 424

HDMI Output Format:
1080p 50/59.94/60
1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
480i 59.94, 576i 50

HDMI Color Space and Precision: YCbCr 4: 2: 2

Power:

Power: Power Micro USB

Power Consumption: 2.5W (Max)

Voltage Range: USB 3.3-5.5V

Physical Specifications:

Dimension: 72.4 × 41 × 24.6mm

Net Weight: 110g

Gross Weight: 470g

Environmental Specifications:

Operating Temperature: 0 ~40 deg C

Storage Temperature: -30~70 deg C

Relative Humidity: 0%~90% non-condensing

Whats Included:

CB-2011 (3G-SDI to HDMI Mini Converter)

Mounting Bracket with 4 screws (12g)

DC 5V Universal Power Supply with 5 International Socket Adapters

USB Cable (150cm)
