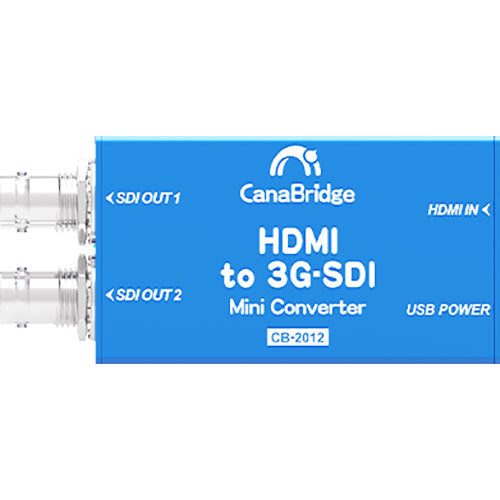

CanaBridge CB-2012 HDMI to 3G-SDI Mini Video Converter

CanaBridge CB-2012 HDMI to 3G-SDI Mini Video Converter

CB-2012 is an affordable and portable HDMI to SDI converter. With micro USB power supply, convenient and detachable mounting bracket, CB-2012 is the best choice for indoors and outdoors. It adopts a type-A HDMI input and dual 3G-SDI outputs, supporting a conversion of full HD resolution signal of 1080p60 to professional SDI signal. Different video rateof SD/HD/3G-SDI is selectable for SDI output.

Specifications:
Connections:

HDMI Video Input: 1 × HDMI A

SDI Video Output: 2 × SD/HD/3G-SDI (75-ohm BNC)

Micro USB: Power and software update

Power LED: Power indicator

SDI LED: SDI output signal indicator

Functions and Standards:

HDMI Input Format:
1080p 50/59.94/60
1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
576i 50, 480i 59.94

HDMI Color Space and Precision: YCbCr 4:2:2: YCbCr 4:4:4, RGB 4:4:4

SDI Output Format:
1080p 50/59.94/60
1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
625i 59.94, 625i 50

SDI Video Rate: SD/HD/3G-SDI

SDI Color Space and Precision: YCbCr 4: 2: 2

SDI Standard: SMPTE ST 259: SMPTE ST 292-1: SMPTE ST 424

HDCP: Signal with HDCP doesnt pass through

Power:

Power: Power Micro USB

Power Consumption: 2W (Max)

Voltage Range: USB 3.3-5.5V

Physical Specifications:

Dimension: 72.4 × 41 × 24.6mm

Net Weight: 110g

Gross Weight: 470g

Environmental Specifications:

Operating Temperature: 0 ~40 deg C

Storage Temperature: -30~70 deg C

Relative Humidity: 0%~90% non-condensing

Whats Included:

CB-2012 (HDMI to 3G-SDI Mini Converter)

Mounting Bracket with 4 screws (12g)

DC 5V Universal Power Supply with 5 International Socket Adapters

USB Cable (150cm)
