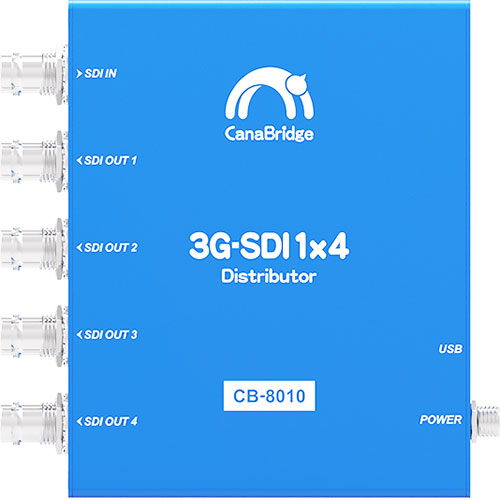

CanaBridge CB-8010 3G-SDI 1x4 Re-Clocking Distribution Amplifier

CanaBridge CB-8010 3G-SDI 1x4 Re-Clocking Distribution Amplifier

The CanaBridge CB-8010 is a miniature and low-cost 1x4 3G/HD/3G-SDI re-clocking distribution amplifier. Among the 4 outputs, the SDI out 2 and SDI out 4 can support ASI signal. Also, this distribution amplifier can be powered by DC or Micro USB. Featuring four separately buffered SDI outputs, the CB-8010 provides automatic input detection, re-clocking and cable equalization.

CB-8010 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities, rental and staging, and many other applications.

Specifications:
Connections:

SDI Video Input: 1 × SD/HD/3G-SDI (75O BNC)

SDI Video Output: 4 x SD/HD/3G-SDI (75-ohm BNC)

SDI Video Output 2 and Output 4 support ASI Signal

Micro USB: Power and software update

Functions and Standards:

SDI Video Rate: SD/HD/3G-SDI

SDI Auto Switching: Automatically detects SD, HD, and 3G-SDI

SDI Standard: SMPTE ST 259: SMPTE ST 292-1: SMPTE ST 424: DVB-ASI

Power:

Power Supply: Micro USB orThreaded Locking DC Connector

Voltage Range: USB 5V

: DC 1-17V

Power Consumption: 1.5W (Max)

Physical Specifications:

Dimension: 125.5 × 101.4 × 27.5mm

Net Weight: 310g

Gross Weight: 920g

Environmental Specifications:

Operating Temperature: 0 ~40 deg C

Storage Temperature: -30~70 deg C

Relative Humidity: 0%~90% non-condensing

Whats Included:

CB-8010 3G-SDI 1x4 Distribution Amplifier

2 pcs Mounting Brackets with 4 screws (15g/2pcs)

DC 12V Universal Power Supply with 5 International Socket Adapters
