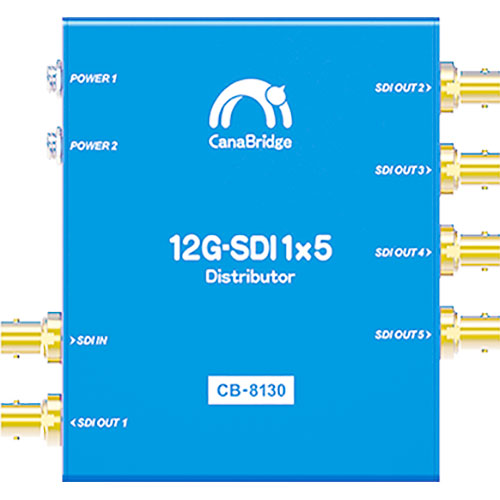

CanaBridge CB-8130 12G-SDI 1x5 Reclocking Distribution Amplifier

CanaBridge CB-8130 12G-SDI 1x5 Reclocking Distribution Amplifier

CANCB-8130

$833.75 USD
$833.75 USD
Sale Sold out
CanaBridge CB-8130 12G-SDI 1x5 Reclocking Distribution Amplifier

The CB-8130 is a miniature, low-cost 1×5 12G/6G/3G/HD/SD-SDI re-clocking distribution amplifier. Featuring five separately buffered SDI outputs, the CB-8130 provides automatic input detection, re-clocking and cable equalization.

Features and Benefits:

  • CB-8130 is a compact, one input, five output distribution amplifier for SDI and multi-rate SDI video signals up to 4K60Hz(12 Gbps). Supported Output1, Output4 and Output5 support DVB-ASI signal
  • 12G/6G/3G/HD/SD-SDI multi-rate signal processing
  • 5 buffered and re-clocked outputs
  • Support DVB-ASI signal (OUT1,4,5)
  • Automatic cable equalization and signal re-timing
  • All ancillary data is passed to the outputs
  • LED indicators for power and signal lock
  • Threaded locking power connector
  • Dual redundant power supplies
  • Detachable bracket design for wall mounting
  • Equalized on the SDI input and reclocking on the SDI outputs to maximize performance
    •
