Canare 12G-SDI / 4K UHD 16AWG Single Channel BNC Cable 50 FT

Canare 12G-SDI / 4K UHD 16AWG Single Channel BNC Cable 50 FT

301L55CUHD-BB-050BLA

$75.95 USD
$75.95 USD
Sale Sold out

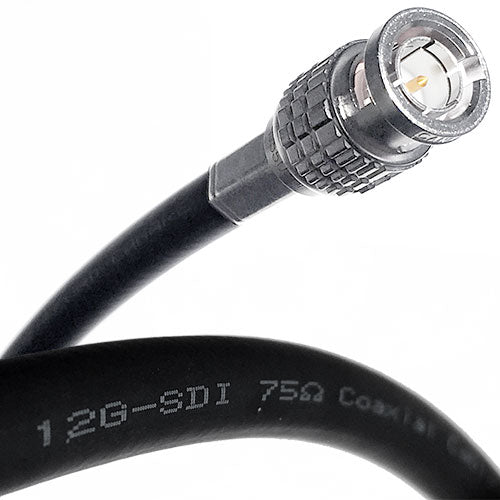

Canare 12G-SDI / 4K UHD 16 AWG Single Channel BNC Cable 50 FT

Didnt think it was possible to send a 12G-SDI / 4K UHD signal over a single coax cable up to 335 feet?.....Well, think again!

Once again, Canare is setting the standard in the broadcast industry with its new L-5.5CUHD 12G-SDI Video Coax cable, and matching 12G 75-ohm HD BNC Cable End Connector, used to make this new series of Ultra-High Definition BNC Video Cables.

Features and Specifications:

  • 12G-SDI / 4K UHD Coaxial Cable, 75-Ohm
  • Carries a 12G-SDI (2160p) signal up to 335 feet (SMPTE ST2082-1)
  • Cable Overall Diameter - 0.303 inches (7.7mm)
  • Center Conductor: Solid Annealed Copper 16 AWG
  • Highly-foamed PE insulation for great attenuation characteristics
  • Outer Conductor 1 (shield): Copper Laminated Tape
  • Outer Conductor 2 (shield): Tinned Annealed Copper Braid >=91%
  • Terminated with Canare 12G 75-ohm BNC connectors, nickel body & gold plated contacts
  • Canare by HAVEPro expert assembly
  • HAVEPro Lifetime Warranty

    • Suitable for the following applications:

  • Studios
  • Mobile Trucks
  • Rental & Staging
  • Installations
  • 4K, UHDTV

    • Compatible with Blackmagic, Marshall, Osprey, Atamos, Postium, AVID and many more!
