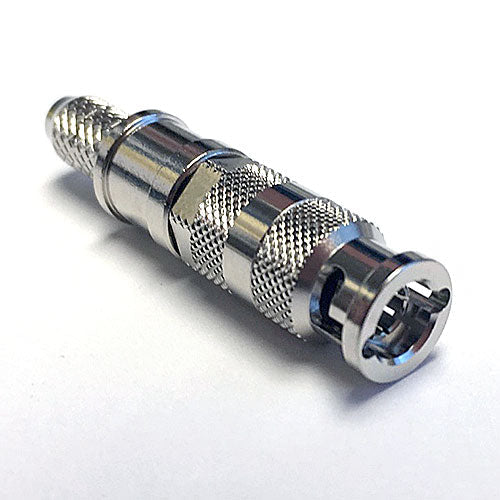

Canare 12G-SDI 4K UHD Micro-BNC Male Connector (HD-BNC) For L-3.3CUHD

Canare 12G-SDI 4K UHD Micro-BNC Male Connector (HD-BNC) For L-3.3CUHD

CANHBCPD33UHD

$5.49 USD
$5.49 USD
Sale Sold out
Canare 12G-SDI 4K UHD Micro-BNC Male Connector (HD-BNC) For L-3.3CUHD

Canare HBCP-D33UHD Male Micro-BNC crimp cable end connector is designed to match with Canare L-3.3CUHD 12G-SDI video coax cable, and are fully compatible with the Amphenol line of HD-BNC connectors. The connector features low return loss up to 12GHz, and Canare quality nickel plated die-cast coupling sleeve and brass body, and gold plated center pin.

Key Features & Benefits

  • 12G-SDI 4K UHD Capable
  • SMPTE ST-2082-1 Compliant
  • Specifically engineered for Canare L-3.3CUHD 12G-SDI Cable
  • Canare crimp design ensures quick and reliable installation
  • Gold plated "snap lock" center pin and beryllium copper outer contact
  • Elongated body design for better grip
  • Fully compatible with the Amphenol line of HD-BNC connectors

    • Key Specifications

  • Cable - Canare L-3.3CUHD 12G Video Coax
  • Crimp Die Set: Canare TCD-D253F
  • Crimp Tool - TC-1
  • Return Loss (0-3GHz) - 20dB or greater
  • Return Loss (0-6GHz) - 13dB or greater
  • Return Loss (0-12GHz) - 8dB or greater
    •
