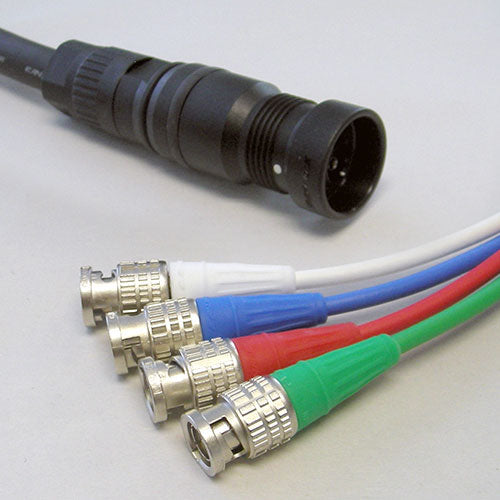

Canare 4K 4-Channel HD-SDI Video Cable DIN Female to BNC Male 1M

Canare 4K 4-Channel HD-SDI Video Cable DIN Female to BNC Male 1M

304VS01-MDF-25HW

$140.36 USD
$140.36 USD
Sale Sold out
Canare 4K 4-Channel HD-SDI Video Cable DIN Female to BNC Male 1 Meter

Canare by HAVEPros new 4K 4-Channel system helps fill the ever growing need for high-density 3G-SDI video transmission applications. This handy 4-channel 75-ohm cable assembly is made with Canare V4-2.5CHW 4-channel 22AWG HD-SDI video coax cable, Canares new 4-channel 4K DIN connector, and Canare HD BNC male connectors.

This cable is designed for HD-SDI output from 4K or HD/SDI cameras with BNC I/Os, terminating to Canares high-density, 4-channel circular DIN connector. The HD-SDI DIN connector integrates within a custom design-able 3G-SDI/4K distribution system utilizing Canares high-density, small footprint D-Size 4-channel DIN panel mount connector. The system is great for Mobil Trucks or Fly Packs or wherever high-density HD-SDI video transport is required.

Features and Specifications:

  • Made with Canare V4-2.5CHW 4-Channel 22AWG HD-SDI video coax cable
  • Stranded Annealed Copper Center Conductors - 22 AWG
  • Foam Polyethylene Dielectric
  • Dual Tinned Annealed Copper Braid Shields for Flexibility and great bending performance
  • Precision Coax 100% Sweep Tested
  • Canare MDF-V4C25HW 4-Channel Female DIN (1.0/2.3) Push-Pull Connector
  • Compact 4-Channel DIN Connector features a solid, lightweight nylon resin body
  • Return Loss: 20 dB @ 3 GHz
  • Canare BCP-B25HW Male BNC Connectors (4)

    • Applications:

  • High Density 3G-SDI applications
  • Rated for all 3G-SDI SMPTE applications
  • SMPTE 424M rated up to 40 Meters
  • Mobile Trucks
  • Fly Packs
  • Studios
  • 4K Transmission from Camera to distribution
  • Consolidate HD-SDI Lines
    •
