Canare 4K 4-Channel HD-SDI Video Cable DIN Male to DIN Female 2M

Canare 4K 4-Channel HD-SDI Video Cable DIN Male to DIN Female 2M

304VC02-MDM-F-25HW

$206.12 USD
$206.12 USD
Sale Sold out

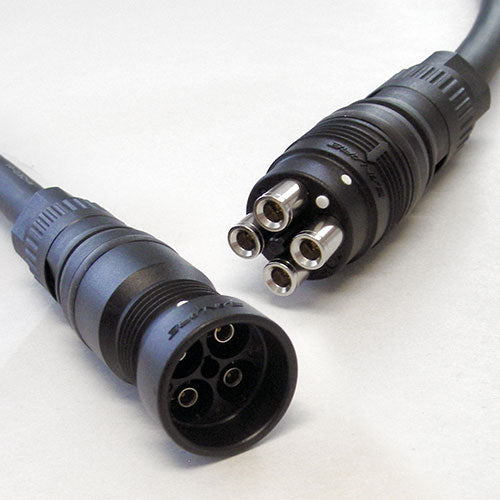

Canare 4K 4-Channel HD-SDI Video Cable DIN male to DIN female 2 Meter

Canare by HAVEPros new 4K 4-Channel system helps fill the ever growing need for high-density 3G-SDI video transmission applications. This handy 4-channel 75-ohm cable assembly is made with Canare V4-2.5CHW 4-channel 22AWG HD-SDI video coax cable, and Canares new 4-channel 4K Male DIN and Female DIN connectors.

This cable, within Canares 4K 4-Channel system, acts as an extension or trunk line between distribution points from 4K or HD/SDI cameras to destination. The HD-SDI DIN male connector on each end integrates within a custom design-able 3G-SDI/4K distribution system utilizing Canares high-density, small footprint D-Size 4-channel DIN panel mount connector (or not). The system is great for Mobil Trucks or Fly Packs or wherever high-density HD-SDI video transport is required.

Features and Specifications:

  • Made with Canare V4-2.5CHW 4-Channel 22AWG HD-SDI video coax cable
  • Stranded Annealed Copper Center Conductors - 22 AWG
  • Foam Polyethylene Dielectric
  • Dual Tinned Annealed Copper Braid Shields for Flexibility and great bending performance
  • Precision Coax 100% Sweep Tested
  • Canare MDM-V4C25HW 4-Channel Male DIN (1.0/2.3) Push-Pull Connector
  • Canare MDF-V4C25HW 4-Channel Female DIN (1.0/2.3) Push-Pull Connector
  • Compact 4-Channel DIN Connector features a solid, lightweight nylon resin body
  • Return Loss: 20 dB @ 3 GHz

    • Applications:

  • High Density 3G-SDI applications
  • Rated for all 3G-SDI SMPTE applications
  • SMPTE 424M rated up to 40 Meters
  • Mobile Trucks
  • Fly Packs
  • Studios
  • 4K Transmission from Camera to distribution
  • Consolidate HD-SDI Lines
    •
