Canare BCJ-D33UHD 12G-SDI 4K UHD BNC Female for Canare L-3.3CUHD

Canare BCJ-D33UHD 12G-SDI 4K UHD BNC Female for Canare L-3.3CUHD

CANBCJD33UHD

$11.25 USD
$11.25 USD
Sale Sold out

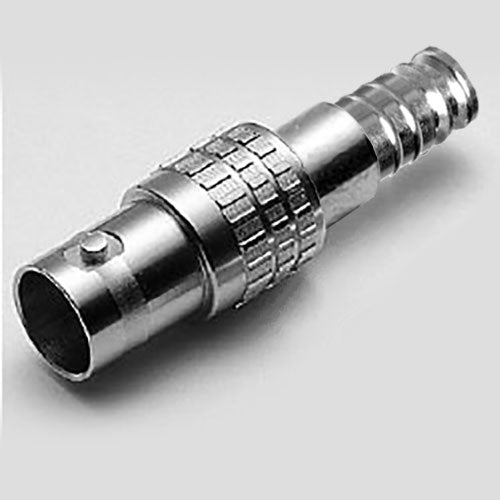

Canare BCJ-D33UHD 12G-SDI 4K UHD 75-Ohm BNC Female Cable End Connector - For Canare L-3.3CUHD Cable

Canare BCJ-D33UHD Female BNC crimp cable end connector is designed to match with Canares new 12G-SDI UHD video coax cable, L-3.3CUHD. The connector features low return loss up to 12GHz, and Canare quality nickel plated die-cast coupling sleeve and brass body, and gold plated center pin.

Key Features & Benefits

  • 12G-SDI 4K UHD Capable
  • SMPTE ST-2082-1 Compliant
  • Specifically engineered for the Canare 12G-SDI Cable L-3.3CUHD
  • Canare crimp design ensures quick and reliable installation
  • Gold plated "snap lock" center pin and beryllium copper outer contac
  • Elongated body design for better grip
  • Ideal for Assembling Adapter Cables from DIN 1.0/2.3 or Micro (HD) BNCs to Female BNCs

    • Key Specifications

  • Matching Cable - Canare L-3.35CUHD
  • Crimp Die Set: Canare TCD-35CA
  • Crimp Tool - TC-1
  • Return Loss (0-3GHz) - 20dB or greater
  • Return Loss (0-6GHz) - 15dB or greater
  • Return Loss (0-12GHz) - 10dB or greater
    •
