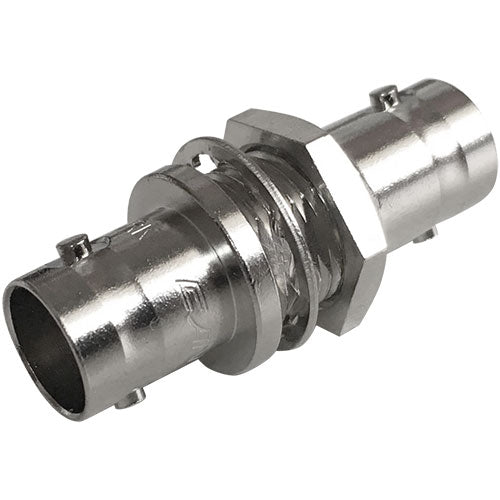

Canare BCJ-JRK 75-ohm 12G-SDI BNC Jack-Jack Standoff Receptacle

Canare BCJ-JRK 75-ohm 12G-SDI BNC Jack-Jack Standoff Receptacle

CANBCJJRK

$4.23 USD
$4.23 USD
Sale Sold out
Canare BCJ-JRK 75-ohm 12G-SDI BNC Jack-Jack Standoff Receptacle

Canares BCJ-JRK 75-ohm BNC Jack-to-Jack Standoff Panel Mount Receptacle is designed specifically for 12G-SDI / 4K applications.

Features

  • True 75-ohm construction
  • DC to 3GHz - 26dB Return Loss
  • DC to 6GHz - 20dB Return Loss
  • DC to 12GHz - 15dB Return Loss
  • Rated for 12G-SDI
  • Double D Hole Punch
  • Use with Canare Isolation Bushing CANIU716
  • Beryllium copper, Gold plated center contact
  • Use Canare CANBET12 Extraction Tool to insert and extract all Canare BNC crimp plugs from recessed or standoff BNC receptacle and DVJ digital video jacks

    • Applications:

  • SMPTE: HD-SDI ST292: 3G-SDI ST424: 6G-SDI ST2081-1: 12G-SDI ST2082-1 Compliant
  • UHD/SDI, HD/SDI Digital Video
  • UHD Upgrades
  • NTSC Analog
  • Test Equipment
  • Satellite Headends
  • TELCOM
  • Remote applications
    •
