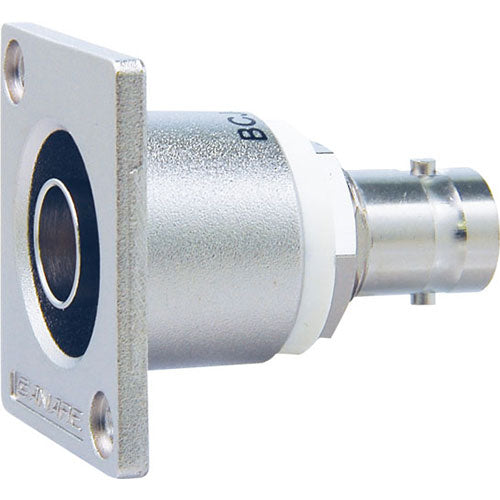

Canare BCJ-JRUK 75-ohm 12G-SDI BNC Jack-Jack Flush Mount Receptacle ITT-F77
Canare BCJ-JRUK 75-ohm 12G-SDI BNC Jack-Jack Flush Mount Receptacle ITT-F77
SKU:CANBCJJRUK
Regular price
$6.08 USD
Regular price
Sale price
$6.08 USD
Canare BCJ-JRUK 75-ohm 12G-SDI BNC Jack-Jack Flush Mount Receptacle ITT-F77
True 75-ohm construction
DC to 3GHz - 26dB Return Loss
DC to 6GHz - 20dB Return Loss
DC to 12GHz - 15dB Return Loss
Rated for 12G-SDI
ITT-F77 Flush Mount Type
Beryllium copper, Gold plated center contact
Use Canare CANBET12 Extraction Tool to insert and extract all Canare BNC crimp plugs from recessed or standoff BNC receptacle and DVJ digital video jacks
SMPTE: HD-SDI ST292: 3G-SDI ST424: 6G-SDI ST2081-1: 12G-SDI ST2082-1 Compliant
UHD/SDI, HD/SDI Digital Video
UHD Upgrades
NTSC Analog
Test Equipment
Satellite Headends
Remote Applications
Canares BCJ-JRUK 75-ohm BNC Jack-to-Jack Flush Mount Panel Receptacle is designed specifically for 12G-SDI / 4K applications, and has an ITT-F77 footprint.
Features
Applications:
