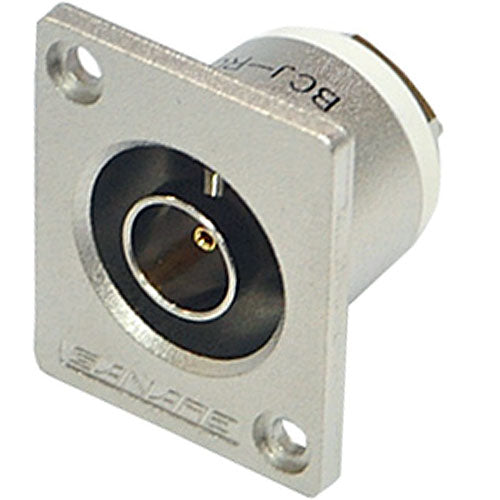

Canare BCJ-RU BNC Female Flush Mount ITT Flange

Canare 75-ohm BNC RECESSED Bulkhead Receptacle - Jack-to-Solder Pin. Ordinary panel mount BNC Bulkhead connectors are often precariously exposed on a wall plate located in high traffic areas offeringlittle protection from physical damage. Canares unique RECESSED FLUSH MOUNT panel jack design effectively solves the problem and protects the housed connector.

Built in panel isolation bushing.Receptacle resides safely on the same panel alongside any audio, power, data or intercom lines without electrical crosstalk or grounding problems (also available in recessed 75-ohm RCA and F jack versions)

Mounts in common Canare hole punch

Totally isolated from Panel

<1.1 VSWR DC-2GHz

Center Contact Plating Material: Beryllium Copper Gold

Body Plating Material: Brass Nickel

Insulation Resistance @ 500V DC: >1000 M-ohm

Voltage Rating for 1 Minute: 1500V AC(rms)

Center Contact Resistance: <6m-ohm

Outer Contact Resistance: <3m-ohm

Use with Canare Isolation Bushing CANIU716

Use our high-quality Canare CANBET12 Extraction Tool to insert and extract all Canare BNC crimp plugs from recessed or standoff BNC receptacles and DVJ digital video jacks.
