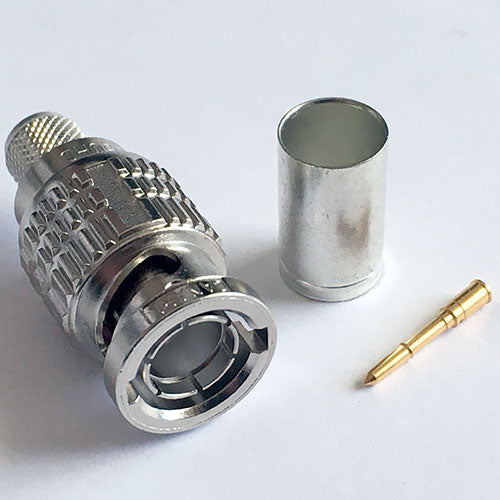

Canare BCP-D33UHD 12G-SDI 4K UHD BNC Male for Canare L-3.3CUHD

Canare BCP-D33UHD 12G-SDI 4K UHD BNC Male for Canare L-3.3CUHD

CANBCPD33UHD

$4.27 USD
$4.27 USD
Sale Sold out
Canare BCP-D33UHD 12G-SDI 4K UHD 75-Ohm BNC Male Cable End Connector - For Canare L-3.3CUHD Cable

Canare BCP-D33UHD Male BNC crimp cable end connector is designed to match with Canares new 12G-SDI UHD video coax cable, L-3.3CUHD. The connector features low return loss up to 12GHz, and Canare quality nickel plated die-cast coupling sleeve and brass body, and gold plated center pin.

Key Features & Benefits

  • 12G-SDI 4K UHD Capable
  • SMPTE ST-2082-1 Compliant
  • Specifically engineered for the Canare 12G-SDI Cables
  • Canare crimp design ensures quick and reliable installation
  • Gold plated "snap lock" center pin and beryllium copper outer contact
  • Elongated body design for better grip
  • Position mark on the body makes it easier to check if the connector is locked

    • Key Specifications

  • Matching Cable - Canare L-3.35CUHD
  • Crimp Die Set: Canare TCD-35CA
  • Crimp Tool - TC-1
  • Boot - CB03
  • Return Loss (0-3GHz) - 26.4dB or greater
  • Return Loss (0-6GHz) - 20.0dB or greater
  • Return Loss (0-12GHz) - 15.0dB or greater
    •
