Canare BCP-D55UHD 75-Ohm UHD BNC Male Cable End Connector - Canare L-5.5CUHD
Canare BCP-D55UHD 75-Ohm UHD BNC Male Cable End Connector - Canare L-5.5CUHD
SKU:CANBCPD55UHD
Regular price
$4.10 USD
Regular price
Sale price
$4.10 USD
Canare BCP-D55UHD 75-Ohm UHD BNC Male Cable End Connector -
For Canare L-5.5CUHD CableDC to 3GHz: >26dB Return Loss Position mark on body Gold plated center pin with snap lock Canares original elongated sleeve design Matching Cable - Canare L-5.5CUHD Crimp Die Set: Canare TCD-55UHD Crimp Tool - TC-1 Boot - CB02 Return Loss (0~3GHz) - 26.4dB or greater Return Loss (0~6GHz) - 20.0dB or greater Return Loss (0~12GHz) - 15.0dB or greater Coupling Sleeve - Zinc Alloy Die Casting Center Pin - Gold Plating
For Canare L-5.5CUHD Cable

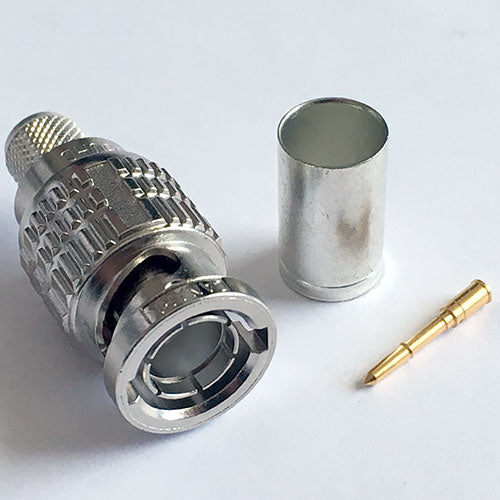

Canare BCP-D55UHD Male BNC crimp cable end connector is designed to match with Canares new 12G UHD-SDI video coax cable, L-5.5CUHD. The connector features low return loss up to 12GHz, and Canare quality nickel plated die-cast coupling sleeve and brass body, and gold plated center pin.
