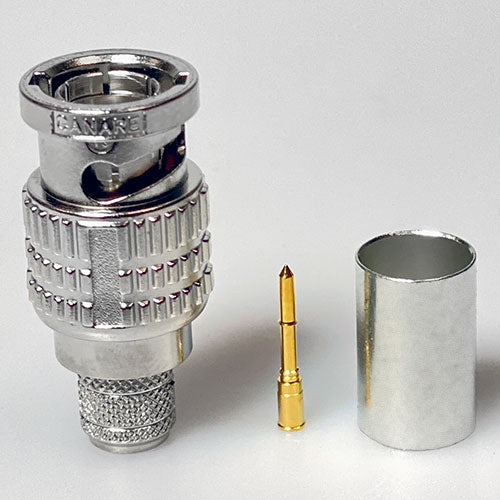

Canare BCP-D55UHW 75-Ohm 12G Rated BNC Male Cable End Connector - Canare L-5.5CUHWS

Canare BCP-D55UHW 75-Ohm 12G Rated BNC Male Cable End Connector - Canare L-5.5CUHWS

CANBCPD55UHW

$5.37 USD
$5.37 USD
Sale Sold out
Canare BCP-D55UHW 75-Ohm UHD BNC Male Cable End Connector - For Canare L-5.5CUHWS Cable

Canare BCP-D55UHW Male BNC crimp cable end connector is designed to match with Canares new 12G/4K SDI video coax cable, L-5.5CUHWS. The connector features low return loss up to 12GHz, and Canare quality nickel plated die-cast coupling sleeve and brass body, and gold plated center pin.

Key Features & Benefits

  • Position mark on body
  • Gold plated center pin with snap lock
  • Canares original elongated sleeve design

    • Key Specifications

  • Matching Cable - Canare L-5.5CUHWS
  • Crimp Die Set: Canare TCD-57C
  • Crimp Tool - TC-1
  • Boot - CB055W
  • Return Loss (0~3GHz) - 26.4dB or greater
  • Return Loss (0~6GHz) - 20.0dB or greater
  • Return Loss (0~12GHz) - 15.0dB or greater
  • Coupling Sleeve - Zinc Alloy Die Casting
  • Center Pin - Gold Plating
    •
