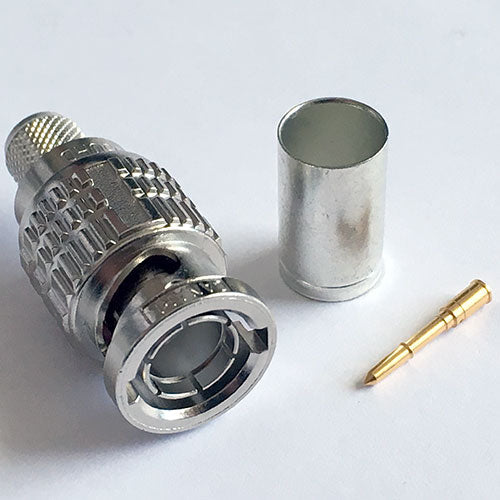

Canare BCP-D57 12G-SDI 4K UHD BNC Male for Belden 4794R

Canare BCP-D57 12G-SDI 4K UHD BNC Male for Belden 4794R

CANBCPD57

$4.98 USD
$4.98 USD
Sale Sold out
Canare BCP-D57 12G-SDI 4K UHD 75-Ohm BNC Male Cable End Connector - For Belden 4794R Cable

Canare BCP-D57 Male BNC crimp cable end connector is designed to match with Belden 4794R 12G-SDI UHD video coax cable. The connector features low return loss up to 12GHz, and Canare quality nickel plated die-cast coupling sleeve and brass body, and gold plated center pin.

Key Features & Benefits

  • 12G-SDI 4K UHD Capable
  • SMPTE ST-2082-1 Compliant
  • Specifically engineered for Belden 4794R 12G-SDI Cable
  • Canare crimp design ensures quick and reliable installation
  • Gold plated "snap lock" center pin and beryllium copper outer contact
  • Elongated body design for better grip
  • Position mark on the body makes it easier to check if the connector is locked

    • Key Specifications

  • Cable - Belden 4794R 12G Video Coax
  • Crimp Die Set: Canare TCD-57C
  • Crimp Tool - TC-1
  • Boot - CB03
  • Return Loss (0-3GHz) - 26.4dB or greater
  • Return Loss (0-6GHz) - 20.0dB or greater
  • Return Loss (0-12GHz) - 15.0dB or greater
    •
