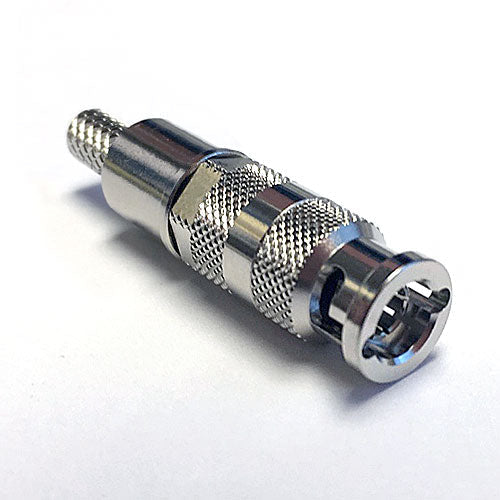

Canare HBCP-D53 12G-SDI 4K UHD 75-Ohm Micro-BNC Male Connector for L-4.5CHD
Canare HBCP-D53 12G-SDI 4K UHD 75-Ohm Micro-BNC Male Connector for L-4.5CHD
SKU:CANHBCPD53
Regular price
$5.99 USD
Regular price
Sale price
$5.99 USD
Canare 12G-SDI 4K UHD Micro-BNC Male Connector (HD-BNC) For L-4.5CHD, L-4.5CHD-PL, 1694A12G-SDI 4K UHD Capable SMPTE ST-2082-1 Compliant Specifically engineered for Canare L-4.5CHD, L-4.5CHD-PL 12G-SDI Cables Also crosses with Belden 1694A cable Canare crimp design ensures quick and reliable installation Gold plated "snap lock" center pin and beryllium copper outer contact Elongated body design for better grip Fully compatible with the Amphenol line of HD-BNC connectors Cable - Canare L-4.5CHD, L-4.5CHD-PL 12G Video Coax, Belden 1694A Crimp Die Set: Canare TCD-D253F Crimp Tool - TC-1 Return Loss (0-3GHz) - 20dB or greater Return Loss (0-6GHz) - 13dB or greater Return Loss (0-12GHz) - 8dB or greater
Canare HBCP-D53 Male Micro-BNC crimp cable end connector is designed to match with Canare L-4.5CHD and L-4.5CHD-PL 12G-SDI video coax cables, and are fully compatible with the Amphenol line of HD-BNC connectors. The connector features low return loss up to 12GHz, and Canare quality nickel plated die-cast coupling sleeve and brass body, and gold plated center pin.
Key Features & Benefits
Key Specifications
