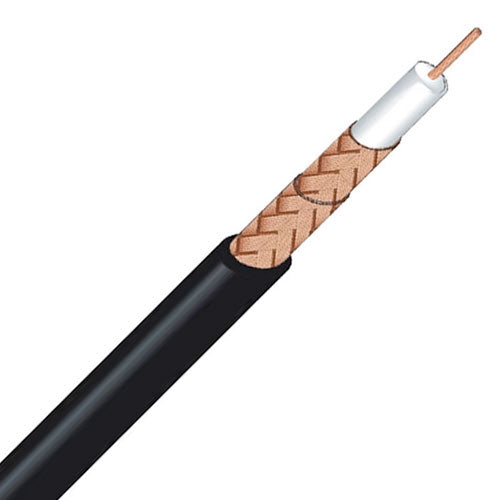

Canare L-4.5CHWS Extra Flexible RG6 18AWG Stranded HD-SDI Coax - Black 200M (656FT)

CANL4.5CHWSBLA200M - Canare L-4.5CHWS Extra Flexible RG6 18AWG Stranded HD-SDI Coax - Black. 200M Reel (656 FT)

Canares new Flexible HD Coax, L-4.5CHWS for 3G-SDI, HD-SDI for Mobile applications. Stranded conductors and double-braided shield offering excellent flexibility. Perfect for mobile applications. Minimal bend memory, ideal for use on cable reels.

L-CHWS HD-SDI Coax Features

Center conductor: 18 AWG stranded

Double Braided Shield

Outer Diameter: 7.2mm

Ideal for mobile applications

Max transmission distance: 3G-SDI 60m, HD-SDI 87m

Applications

HDTV Upgrades

Broadband Facilities

HD-SDI SMPTE 292 1.485 Gbps : 285 ft. (87 m)

HD-SDI SMPTE 424 2.97 Gbps : 295 ft. (90 m)

12G-SDI SMPTE 2082.1 11.88 Gbps : 164 ft. (50 m)

Canare Maximum Distance by Video Format Chart
