Canare L-4E5AT Star Quad Microphone Cable 25AWG Foil Shield, per FT
Canare L-4E5AT Star Quad Microphone Cable 25AWG Foil Shield, per FT
SKU:BLA
Regular price
$0.31 USD
Regular price
Sale price
$0.31 USD
Canare L-4E5AT Star Quad Microphone Cable 25AWG Foil Shield, per FT
Conductor: 25 AWG, 30 strand (x4) Copper conductors for flexibility and expanded frequency response
Special cross-linked PE insulation
Shield: 100% Aluminum Foil
Conductor DC Resistance: 10.7 ohms/100m
Nominal Capacitance between conductors: 164 pF/m
Nominal Capacitance between onductor and shield: 222 pF/m
Nominal Outside Diameter (O.D.): .197 in. (5.0mm)
Available Jacket Colors: Black

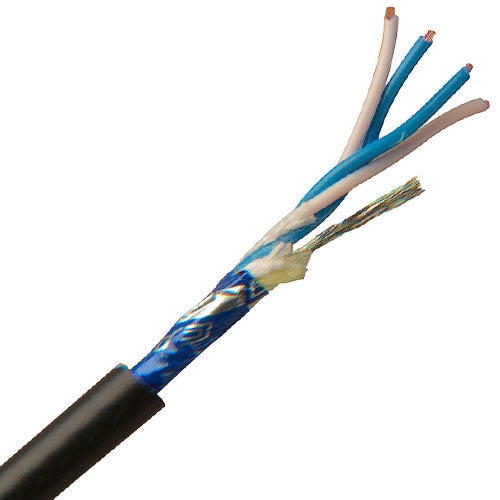

Canare L-4E5AT Star Quad Mic and Audio Line Cable is a 25 AWG narrow profile Star Quad specifically designed for point to point wiring in fixed installations. Features include 100% Aluminum Foil Shield with Drain Wire, slick easy to pull PVC Jacket reinforced internally with Dupont Kevlar 29 filler thats stronger than steel to resist stretching or kinking when pulling through conduit. Foil shield and drain wire strip easily for quick assembly (1/3rd the assembly time of braided shields). Star Quad virtually eliminates handling noise and rejects EMI and RFI. Great for Microphones, Audio Rack Wiring, PA Systems or Audio Patch Cords.
Features and Specifications:
