Canare L-8CUHD 75-ohm 12G UHD-SDI Video Coax Black 300M

Canare L-8CUHD 75-ohm 12G UHD-SDI Video Coax Black 300M

CANL8CUHDBLA300M

$1,457.32 USD
$1,457.32 USD
Sale Sold out

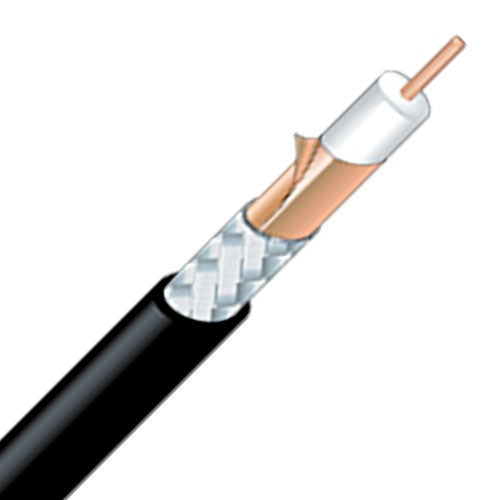

Canare L-8CUHD 75-ohm 12G UHD-SDI Video Coax - Black, 300 Meter Reel (984 FT)

New from Canare, L-8CUHD 75-ohm 12G UHD-SDI Video Coax Cable can effectively transmit 12G-SDI signals over a distance of over 140 meters.

Use Canare matching, minimal return loss HD BNC male connector, part BCP-D8UHD.

Canare L-8CUHD Features

  • 12G UHD-SDI Coaxial Cable, 75-Ohm
  • Center Conductor: Solid Annealed Copper 13 AWG
  • Highly-foamed PE insulation for great attenuation characteristics
  • Outer Conductor 1 (shield): Copper Laminated Tape
  • Outer Conductor 2 (shield): Tinned Annealed Copper Braid >=91%
  • Cable Overall Diameter - 11.1mm (0.437 in)

    • Applications

  • 12G UHD-Serial Digital Video
  • Mobile Truck, ENG, Broadcast
  • HD-SDI (1080i) SMPTE ST 292 1.485 Gbps : 722 ft. (220 m)
  • 3G-SDI (1080p) SMPTE ST 424 2.97 Gbps : 744 ft. (227 m)
  • 12G-SDI (2160p) SMPTE ST 2082-1 11.88 Gbps : 469 ft. (143 m)

  • Canare Maximum Distance by Video Format Chart
    •
