Canare LV-61S 75-Ohm BNC-RCA Video Cable 50 FT

Canare LV-61S 75-Ohm BNC-RCA Video Cable 50 FT

BLA

$57.27 USD
$57.27 USD
Sale Sold out

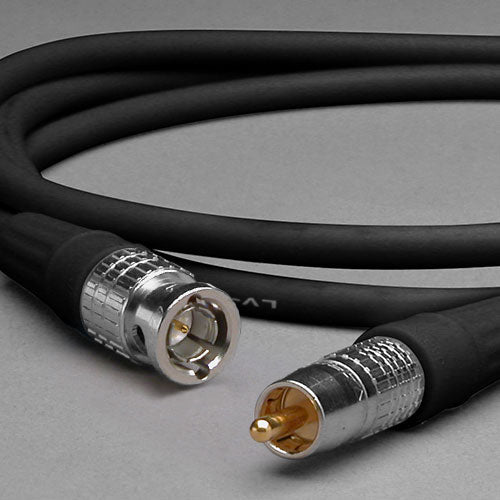

Canare LV-61S 75-Ohm BNC to RCA Video Cable 50 FT

Super flexible Canare by HAVEPro Standard Broadcast Video cables are handcrafted with Canare LV-61S RG59 cable with matching impedance true 75-ohm BNC and RCA connectors. Perfect for all video facility equipment interfacing and video patch cord assemblies.

Features and Specifications:

  • Hand assembled with Canare LV-61S 24AWG Standed Center Conductor Cable
  • True impedance matched 75-Ohm gold tipped Canare BNC and RCA connectors
  • Tightly woven, >95% Bare Copper Braid Shield
  • Special Foam Polyethylene dielectric for extremely low loss
  • Number of Channels: 1
  • Conductor: 24 AWG Stranded Copper for flexibility
  • Conductor DC Resistance: <25.9 ohms/1000 ft.
  • Shield DC Resistance: <4.0 ohms/1000ft.
  • Capacitance: 21 pF/ft.
  • Nominal impedance: True 75 ohm
  • Nominal Loss: 5.0 dB/100 ft at 150 MHz
  • Standard Jacket color: Black (Special order : Blue, Brown, Gray, Green, Orange, Purple, Red, White, Yellow)
  • Canare LV-61S Video Cables also available in BNC to BNC, and RCA to RCA configurations
  • HAVEPro Lifetime Warranty
    • Color
