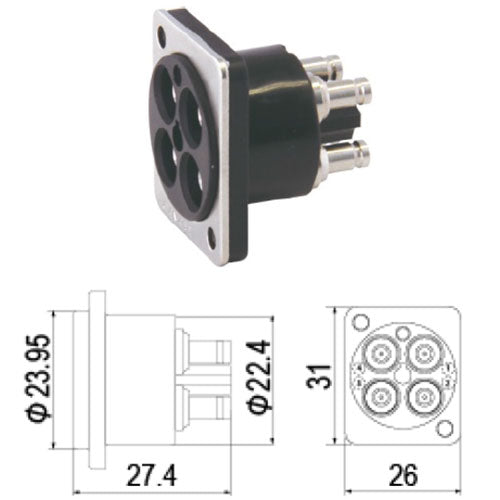

Canare MDF-V4JRU 4-Channel 75-ohm Multi-pin DIN Panel Mount Receptacle

Canare MDF-V4JRU 4-Channel 75-ohm Multi-pin DIN Panel Mount Receptacle

SPECIAL ORDER ITEM: Non-Cancelable,
Non-Returnable, Non-Refundable

Part of Canares new 4K 4-Channel products that help fill the ever growing need for higher-density and increased A/V feeds. This 4K 75-ohm multi-pin panel mount connector works in conjunction with Canares 4-channel 4K DIN cable end connector to help deliver your 3G signal wherever it needs to go.

The MDF-V4JRU 4-channel DIN pass through has an Neutrik D footprint, and mates perfectly with Canares 4-Channel DIN Male connector.

Features and Specifications:

• Mates perfectly with Canare MDM-V4C25HW Male 4-channel multi-pin DIN cable end connector
• 75-ohm 4-channel coax connector with push-pull locking mechanism
• Based on DIN connector 1.0/2.3
• Compact, solid, and lightweight nylon resin body
• Return Loss: 20 dB @ 3 GHz
• Also accepts DIN 1.0/2.3 plugs individually
• Neutrik D Flange footprint
• Can breakout to 4 BNC Connectors

Applications:

• High density 3G-SDI applications
• Mobile Trucks
• Fly Packs
• Studios
• 4K Transmission
• Consolidate HD-SDI Lines
