Canare MDM-V4C25HW 4-Channel 75ohm Multi-pin DIN Male Connector

Canare MDM-V4C25HW 4-Channel 75ohm Multi-pin DIN Male Connector

CANMDMV4C25HW

$62.00 USD
$62.00 USD
Sale Sold out

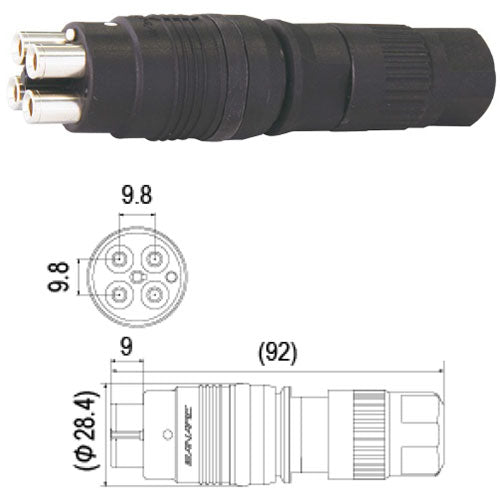

Canare MDM-V4C25HW 4-Channel 75-ohm Male Multi-pin DIN Cable Connector

Part of Canares new 4K 4-Channel products that help fill the ever growing need for higher-density and increased A/V feeds. This 4K 75-ohm multi-pin male cable end connector works in conjunction with Canares new V4-2.5CHW 4-channel HD-SDI Video Coax Cable, and with MDF-V4JRU 4-Channel DIN Panel Mount connector.

Features and Specifications:

  • For use with Canare V4-2.5CHW 4-Channel 3G 75-Ohm Coax
  • 75-ohm 4-channel coax connector with push-pull locking mechanism
  • Based on DIN connector 1.0/2.3
  • Compact, solid, and lightweight nylon resin body
  • Return Loss: 20 dB @ 3 GHz

    • Applications:

  • High density 3G-SDI applications
  • Mobile Trucks
  • Fly Packs
  • Studios
  • 4K Transmission
  • Consolidate HD-SDI Lines
    •
