Canare RG59 3-Channel HD-SDI Video Snake Cable BNC-BNC 30 FT

Canare RG59 3-Channel HD-SDI Video Snake Cable BNC-BNC 30 FT

303VS4CFB-BB-030

$147.69 USD
$147.69 USD
Sale Sold out

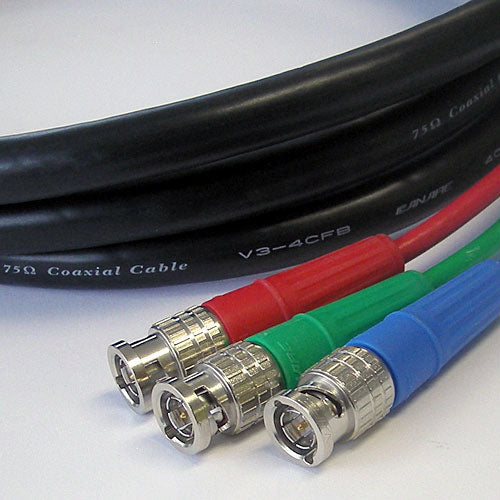

Canare RG59 3-Channel HD-SDI Video Snake Cable BNC to BNC 30 FT

Canare RG59 3-Channel HD-SDI Video Snakes we hand assemble with Canare V3-4CFB Digital Mini Coax and matching impedance Canare BNC connectors. Todays Serial Digital equipment installations require longer tie lines and multiple I/Os, and need serial digital cables designed with matching impedance connectors to maximize overall electrical length and achieve optimal results. These premium cables are designed for 3.0 Gb/s 3G-SDI transmission in lengths up to 180 ft. at SMPTE 424M spec. Perfect for HD-SDI Video Signal transmission between points.

Features and Specifications:

  • Assembled with Canare V3-4CFB RG59 HD/SDI 3-Channel Video Cable
  • 3 BNC to 3 BNC, True 75-ohm Canare Connectors
  • Double Shield : 100% Foil, >93% TAC Braid
  • Special Foam Polyethylene dielectric for extremely low loss
  • Number of Channels: 3, Red, Green, Blue
  • Conductors: 20 AWG Solid Annealed Copper
  • Conductor DC Resistance: < 11.3 ohms/1000 ft.
  • Shield DC Resistance: < 3.0 ohms/1000 ft.
  • Capacitance: 17 pF/ft.
  • Nominal impedance: True 75 ohms
  • Nominal Loss: 3.1 dB/100 ft. at 135 MHz
  • Max HD-SDI Distance: SMPTE 292M 1.5 Gb/s - 269 FT (82M)
  • Max 3G-SDI Distance: SMPTE 424M 3.0 Gb/s - 180 FT (55M)
  • Jacket color: Black
  • HAVEPro LIFETIME Warranty
    •
