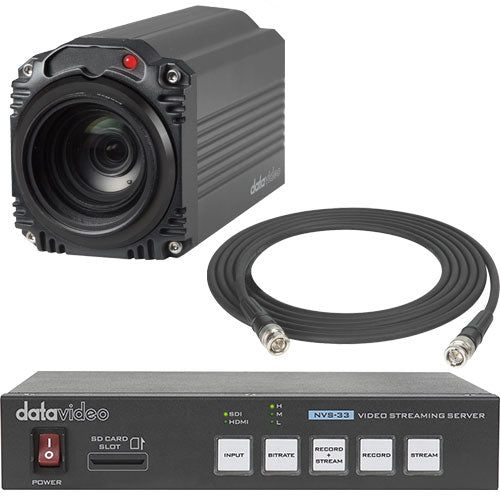

Datavideo EZ Streaming Package A, BC-50 Block Camera, NVS-33 Encoder, 50 FT SDI Cable

Datavideo EZ Streaming Package A, BC-50 Block Camera, NVS-33 Encoder, 50 FT SDI Cable

DATEZPKG-A

$1,498.00 USD
$1,498.00 USD
Sale Sold out
Datavideo EZ Streaming Package A, BC-50 Block Camera, NVS-33 Encoder, 50 FT SDI Cable

Datavideos EZ Streaming Package A includes the BC-50 1080p HD Block Camera, the NVS-33 H.264 Video Streaming Encoder, and includes a 50 Foot SDI Cable. This is a great bundle to get you started streaming video.

BC-50 IP Block Camera Features:

  • Stunning 1080p Full HD Resolution
  • 1/2.7 inch CMOS Sensor
  • 20x Optical Zoom, 16x Digital Zoom
  • Compression H.264/H.265/Motion-JPEG and IP Streaming
  • RTMP protocol for broadcasting to Facebook and YouTube via an RJ-45 connection
  • Controllable by VISCA/Pelco-C/Pelco-D via RS-485
  • Metal Housing
  • Tally Light, Dual LED, Red and Green

    • NVS-33 H.264 Video Streaming Encoder and Recorder Features:

  • H.264 Streaming and Recording Simultaneously
  • Supports different bitrates for recording and streaming
  • Supports RCA unbalanced audio input
  • Supports SDI/HDMI embedded audio
  • Streaming videos in RTMPS, RTMP, RTSP, and TS formats
  • Easy Stream to YouTube, Facebook, and many more platforms
  • Record on SD Card. Easy to store
  • Can record MP4 or TS file to SD card
  • Supports FAT/NTFS file system
  • Recording to SD Card with NTFS or FAT to keep continuous recording without file size limitations
  • Remotely controlled using a Windows / Apple PC or mobile device with a web browser

    • BC-50 IP Block Camera Specs:

  • Video Format: 1080p 60/50/30/25, 1080i 60/50, 720p 60/50
  • Image Sensor: 1/2.7" progressive scan CMOS sensor
  • Effective Pixels (approx.): 2.07 Mega pixels
  • S/N Ratio: 55 dB
  • Min. Illumination: 0.05 Lux @ (F1.8, AGC ON)
  • Electronic Shutter: 1/30 ~ 1/10000 sec
  • Zoom Ratio: 20x Optical zoom, 16x Digital zoom
  • Gamma Control: Yes
  • Iris Control: Auto / Manual
  • Digital Noise Reductions: 2D & 3D
  • On-Screen Display (OSD): English, Simplified Chinese, Traditional Chinese
  • White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
  • AGC / Gain Control: Auto / Manual (0 to 28 step), Max. Gain Limit (6 to 28 step)
  • Mirror / Flip Image: Yes
  • Focus Mode: Auto / Manual
  • Focal Length: f=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7
  • Field of View (Horizontal, Wide): Approx. 63.7° (WIDE END) / 2.3° (TELE END)
  • Image Compensation: Day & Night functionv
  • Video Output: 3G/HD-SDI x1
  • Audio Input: 3.5mm Jack (Stream Output Only)
  • Tally LED: Dual color (Red, Green)
  • Filter: M52.0 x 0.75 Thread with UV Protection
  • Protocol: VISCA, Pelco-D, Pelco-C
  • Remote Control Interface and Transmit Distance: RS-485: Transmit up to 1000m
  • Video Compression Format: H.265, H.264, MJEPG
  • Audio Compression Format: AAC
  • Network Protocol: TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc
  • F/W Update: Ethernet
  • Tripod Mount: 1/4-20 UNC
  • Options: PTR-10
  • Color: Dark Blue
  • Dimension (LxWxH): 2.79 x 6.37 x 3.26 Inches
  • Weight: 1.54 Lbs
  • Operating Temp. Range: 32~104°F
  • Power: DC 12V 6W

    • NVS-33 Encoder / Recorder Specs:

  • Video Input: HDMI x1, SDI x1
  • Supported Video Input Resolution:
    1080p 60/59.94/50
    1080p 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50
    480i 59.94, 576i 50
  • Audio Input: SDI & HDMI embedded audio, RCA L/R x1
  • Encode: H.264/AVC, Main/High Profile
  • Video Bitrate:
    Record Only: Up to 16Mbps (1080p50/60)
    Stream Only: Up to 10Mbps (1080p50/60)
    Rec+Stream: 10Mbps (1080p25/30)
  • Video Rate Mode: CBR/VBR
  • Audio Mode: Stereo/Mono
  • Stereo: 64~384Kbps
  • Mono: 32~192Kbps
  • Streaming Protocols:
    TS over TCP/UDP (unicast & multicast)
    RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    RTMP/RTMPS (Publish)
    HLS<
  • Recording File Format: MP4, TS
  • Storage: SD Card x1, (File System: NTFS, FAT)
  • Power Supply: DC 12V
  • Dimension (LxWxH): 8.66 x 3.74 x 1.85 Inches
  • Weight: 1.54 Lbs
  • Operating Temp. Range: 32-104°F

    • EZ Streaming Package A Includes:

  • 1 - Datavideo BC-50 HD Block Camera
  • 1 - Datavdeo NVS-33 Video Streaming Encoder
  • 1 - 50 FT SDI BNC Cable
    •
