Datavideo EZ Streaming Package A1, BC-50 Block Camera, NVS-33 Encoder, DAC-8P Converter, 50 FT SDI Cable

Datavideo EZ Streaming Package A1, BC-50 Block Camera, NVS-33 Encoder, DAC-8P Converter, 50 FT SDI Cable

DATEZPKG-A1

$1,797.00 USD
$1,797.00 USD
Sale Sold out
Datavideo EZ Streaming Package A1, BC-50 Block Camera, NVS-33 Encoder, DAC-8P Converter, 50 FT SDI Cable

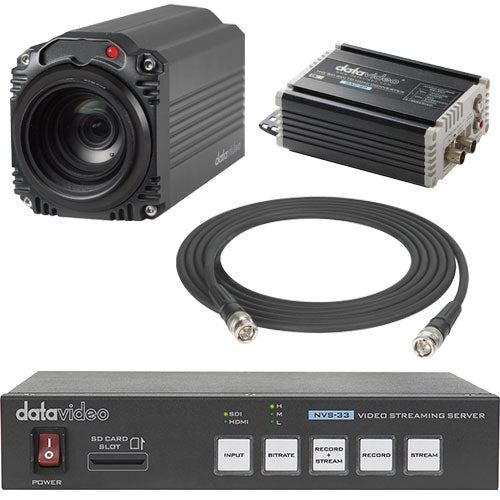

Datavideos EZ Streaming Package A1 includes the BC-50 1080p HD Block Camera, the NVS-33 H.264 Video Streaming Encoder / Recorder, the DAC-8P HD/SD-SDI to HDMI Converter, and includes a 50 Foot SDI Cable. This full featured cost-effective package features a full HD block camera with super telephoto len, 20x optical and 16x digital zoom. The NVD-33 encodes and streams to YouTube, Facebook, and others, and records your video as MP4. This package is high quality, easy to use, and intuitive with web based access to menus, and other variables.

BC-50 IP Block Camera Features:

  • Stunning 1080p Full HD Resolution
  • 1/2.7 inch CMOS Sensor
  • 20x Optical Zoom, 16x Digital Zoom
  • Compression H.264/H.265/Motion-JPEG and IP Streaming
  • RTMP protocol for broadcasting to Facebook and YouTube via an RJ-45 connection
  • Controllable by VISCA/Pelco-C/Pelco-D via RS-485
  • Metal Housing
  • Tally Light, Dual LED, Red and Green

    • NVS-33 H.264 Video Streaming Encoder and Recorder Features:

  • H.264 Streaming and Recording Simultaneously
  • Supports different bitrates for recording and streaming
  • Supports RCA unbalanced audio input
  • Supports SDI/HDMI embedded audio
  • Streaming videos in RTMPS, RTMP, RTSP, and TS formats
  • Easy Stream to YouTube, Facebook, and many more platforms
  • Record on SD Card. Easy to store
  • Can record MP4 or TS file to SD card
  • Supports FAT/NTFS file system
  • Recording to SD Card with NTFS or FAT to keep continuous recording without file size limitations
  • Remotely controlled using a Windows / Apple PC or mobile device with a web browser

    • DAC-8P SDI to HDMI Converter Features:

  • Convert SDI (up to 1080p60) to HDMI with audio embedding options
  • SDI embedded audio is passed through
  • Aluminum Alloy and Heavy Duty Design

    • BC-50 IP Block Camera Specifications:

  • Video Format: 1080p 60/50/30/25, 1080i 60/50, 720p 60/50
  • Image Sensor: 1/2.7" progressive scan CMOS sensor
  • Effective Pixels (approx.): 2.07 Mega pixels
  • S/N Ratio: 55 dB
  • Min. Illumination: 0.05 Lux @ (F1.8, AGC ON)
  • Electronic Shutter: 1/30 ~ 1/10000 sec
  • Zoom Ratio: 20x Optical zoom, 16x Digital zoom
  • Gamma Control: Yes
  • Iris Control: Auto / Manual
  • Digital Noise Reductions: 2D & 3D
  • On-Screen Display (OSD): English, Simplified Chinese, Traditional Chinese
  • White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
  • AGC / Gain Control: Auto / Manual (0 to 28 step), Max. Gain Limit (6 to 28 step)
  • Mirror / Flip Image: Yes
  • Focus Mode: Auto / Manual
  • Focal Length: f=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7
  • Field of View (Horizontal, Wide): Approx. 63.7° (WIDE END) / 2.3° (TELE END)
  • Image Compensation: Day & Night functionv
  • Video Output: 3G/HD-SDI x1
  • Audio Input: 3.5mm Jack (Stream Output Only)
  • Tally LED: Dual color (Red, Green)
  • Filter: M52.0 x 0.75 Thread with UV Protection
  • Protocol: VISCA, Pelco-D, Pelco-C
  • Remote Control Interface and Transmit Distance: RS-485: Transmit up to 1000m
  • Video Compression Format: H.265, H.264, MJEPG
  • Audio Compression Format: AAC
  • Network Protocol: TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc
  • F/W Update: Ethernet
  • Tripod Mount: 1/4-20 UNC
  • Options: PTR-10
  • Color: Dark Blue
  • Dimension (LxWxH): 2.79 x 6.37 x 3.26 Inches
  • Weight: 1.54 Lbs
  • Operating Temp. Range: 32~104°F
  • Power: DC 12V 6W

    • NVS-33 Encoder / Recorder Specifications:

  • Video Input: HDMI x1, SDI x1
  • Supported Video Input Resolution:
    1080p 60/59.94/50
    1080p 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50
    480i 59.94, 576i 50
  • Audio Input: SDI & HDMI embedded audio, RCA L/R x1
  • Encode: H.264/AVC, Main/High Profile
  • Video Bitrate:
    Record Only: Up to 16Mbps (1080p50/60)
    Stream Only: Up to 10Mbps (1080p50/60)
    Rec+Stream: 10Mbps (1080p25/30)
  • Video Rate Mode: CBR/VBR
  • Audio Mode: Stereo/Mono
  • Stereo: 64~384Kbps
  • Mono: 32~192Kbps
  • Streaming Protocols:
    TS over TCP/UDP (unicast & multicast)
    RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    RTMP/RTMPS (Publish)
    HLS<
  • Recording File Format: MP4, TS
  • Storage: SD Card x1, (File System: NTFS, FAT)
  • Power Supply: DC 12V
  • Dimension (LxWxH): 8.66 x 3.74 x 1.85 Inches
  • Weight: 1.54 Lbs
  • Operating Temp. Range: 32-104°F

    • DAC-8P SDI to HDMI Converter Specifications:

  • Conversion: 3G/ HD/SD-SDI to HDMI
  • Video Inputs: 1x 3G/HD/SD-SDI
  • Loop Through: 1
  • Video Outputs: 1x HDMI with embedded Audio
  • Audio Inputs: 2 x RCA (Stereo Pair), 2x SDI Audio embedded
  • Audio Outputs: 2x HDMI Audio embedded
  • Supported Video Input Formats:
    1080p (23.98/24/25/29.97/30/50/59.94/60Hz)
    1080i (50/59.94/60Hz)
    720p (50/59.94/60Hz)
    576i (PAL), 480i (NTSC)
  • Output Resolutions: Automatically matches the SD, HD and 3G SDI video input
  • Equalizer: Yes
  • Reclock: Yes
  • SDI Cable Drive: Yes
  • Dimension (LxWxH): 4.42 x 3.34 x 1.77 Inches
  • Weight: 0.66 Lbs
  • Operating Temp. Range: 32~104°F
  • Power: DC 12V, 4W

    • EZ Streaming Package A Includes:

  • 1 - Datavideo BC-50 HD Block Camera
  • 1 - Datavdeo NVS-33 Video Streaming Encoder
  • 1 - Datavideo DAC-8P SDI to HDMI Converter
  • 1 - 50 FT SDI BNC Cable
    •
