Datavideo EZ Streaming Package B, PTC-140TH PTZ Camera, SE-500HD Switcher, NVS-33 Encoder, 100FT CAT6 Cable

Datavideo EZ Streaming Package B, PTC-140TH PTZ Camera, SE-500HD Switcher, NVS-33 Encoder, 100FT CAT6 Cable

DATEZPKG-B

$3,695.00 USD
$3,695.00 USD
Sale Sold out
Datavideo EZ Streaming Package B, PTC-140TH PTZ Camera, SE-500HD Switcher, NVS-33 Encoder, 100FT CAT6 Cable

Datavideos EZ Streaming Package B includes professional gear thats easy to use, and will grow with you if need be. The bundle includes a PTC-140TH PTZ (Pan Tilt Zoom) SD/HDMI Camera with 20x optical and 10x digital zoom for sharp clear video. A wall mount is also included with the camera. The SE-500HD 4-channel 1080p HDMI digital video switcher is simple to use and a cost effective workhorse with pro features, transmitting HDMI video from the HDBaseT receiver. HDMI then carries the signal to the NVS-33 H.264 Video streaming encoder and MP4 recorder, then via CAT6 to stream to Facebook, YouTube, and others. All in all a great economical package.

PTC-140TH PTZ Camera Features:

  • Made with HDBaseT Technology
  • Stunning Full HD resolution
  • 20x Optical Zoom, 10x Digital Zoom
  • Advanced 2D/3D noise reduction function
  • Simple multi-camera control at your fingertips
  • RMC-300C can control up to 24 PTC-140T cameras

    • NVS-33 H.264 Video Streaming Encoder and Recorder Features:

  • H.264 Streaming and Recording Simultaneously
  • Supports different bitrates for recording and streaming
  • Supports RCA unbalanced audio input
  • Supports SDI/HDMI embedded audio
  • Streaming videos in RTMPS, RTMP, RTSP, and TS formats
  • Easy Stream to YouTube, Facebook, and many more platforms
  • Record on SD Card. Easy to store
  • Can record MP4 or TS file to SD card
  • Supports FAT/NTFS file system
  • Recording to SD Card with NTFS or FAT to keep continuous recording without file size limitations
  • Remotely controlled using a Windows / Apple PC or mobile device with a web browser

    • SE-500HD 4-Channel Digital Video Switcher Features:

  • 4 Channel Analogue Vision Mixer
  • S-Video (Y/C) or Composite Video Inputs
  • Component YUV / S-Video (Y/C) / 2 x Composite Video Outputs
  • 1 x Stereo (Unbalanced)
  • 2 x Microphone Inputs
  • Stereo (Unbalanced) Output
  • Quad View display output
  • Tally Display
  • Preview output
  • Smooth T-bar Control
  • Dual channel TBC 4:2:2 Frame Synchroniser
  • Tally Light Output

    • PTC-140TH PTZ Camera Specifications:

  • Video Format:
    1080p 60/59.94/50/30/29.97/25
    1080i 60/59.94/50
    720p 60/59.94/50
  • Image Sensor: 1/2.8 inch high quality HD CMOS sensor
  • Effective Pixels (approx.): 2.07 Mega pixels
  • S/N Ratio: >55dB
  • Min. Illumination: 0.5Lux (F1.8, AGC ON)
  • Electronic Shutter: Auto / Manual
  • Zoom Ratio: 20x Optical Zoom, 10x Digital Zoom
  • Gamma Control: Off / Normal
  • Iris Control: Auto / Manual
  • Digital Noise Reductions: Yes
  • On-Screen Display (OSD): English, Simplified Chinese
  • White Balance: Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
  • AGC / Gain Control: Auto / Manual
  • Mirror / Flip Image: Yes
  • Focus Mode: Auto / Manual
  • Panning / Tilting Range: Pan: 340° , Tilt: +90° to -30°
  • Panning / Tilting Speed: Pan: 0.1~60°/sec, Tilt: 0.1~30°/sec
  • Preset: 255 Position
  • Focal Length: f=5.2 (wide) to 98 (tele) mm, F1.6 to F3.5
  • Field of View (Horizontal, Wide), Approx. 54.7° (WIDE END) / 3.3° (TELE END)
  • Image Compensation: Backlight Compensation
  • Video Output: HDBaseT (PoE) x1, RJ-45 x1
  • Audio Input: Line In (IP Stream Output)
  • Tally LED: Dual color (Red, Green)
  • Filter: M52.0 x 0.75 Thread with UV Protection
  • Protocol: VISCA, DVIP
  • Remote Control Interface and Transmit Distance: RS-232, Lan (RJ-45), HDBaseT(RJ-45)/ DVIP on Receiver Box: Transmit up to 100m
  • Video Compression Format: H.264, H.265, Dual stream output
  • Audio Compression Format: AAC/MP3/PCM Audio compression
  • HD IP Interface: 100M IP port(100BASE-TX): Support DVIP
  • Network Protocol: RTSP, RTMP
  • F/W Update: Ethernet
  • IR Control: Yes
  • Camera Control Unit: HS-1500T/HS-1600T/RMC-180/RMC-300C
  • Tripod Mount: 1/4-20 UNC
  • Options: WM-1
  • Color: Black/White
  • Dimension (LxWxH): 6.14 x 7.16 x 7.32 Inches
  • Weight: 3.52 Lbs
  • Operating Temp. Range: 32~104°F
  • Power: DC 12V 12W

    • NVS-33 Encoder / Recorder Specifications:

  • Video Input: HDMI x1, SDI x1
  • Supported Video Input Resolution:
    1080p 60/59.94/50
    1080p 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50
    480i 59.94, 576i 50
  • Audio Input: SDI & HDMI embedded audio, RCA L/R x1
  • Encode: H.264/AVC, Main/High Profile
  • Video Bitrate:
    Record Only: Up to 16Mbps (1080p50/60)
    Stream Only: Up to 10Mbps (1080p50/60)
    Rec+Stream: 10Mbps (1080p25/30)
  • Video Rate Mode: CBR/VBR
  • Audio Mode: Stereo/Mono
  • Stereo: 64~384Kbps
  • Mono: 32~192Kbps
  • Streaming Protocols:
    TS over TCP/UDP (unicast & multicast)
    RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    RTMP/RTMPS (Publish)
    HLS<
  • Recording File Format: MP4, TS
  • Storage: SD Card x1, (File System: NTFS, FAT)
  • Power Supply: DC 12V
  • Dimension (LxWxH): 8.66 x 3.74 x 1.85 Inches
  • Weight: 1.54 Lbs
  • Operating Temp. Range: 32-104°F

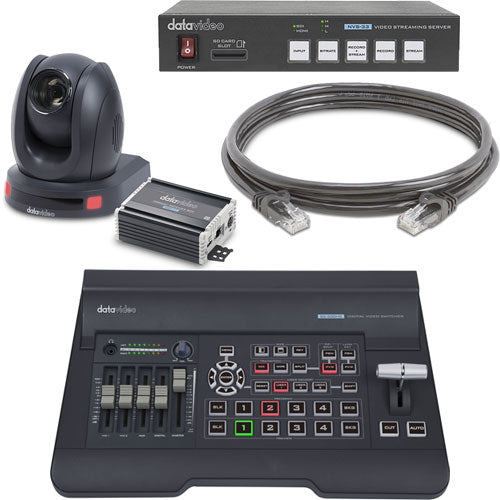

    • EZ Streaming Package B Includes:

  • 1 - Datavideo PTC-140TH PTZ Camera with HBT-11 Receiver
  • 1 - Datavdeo NVS-33 Video Streaming Encoder
  • 1 - Datavideo SE-500HD HDMI Video Switcher
  • 1 - 100 FT CAT6 Cable
    •
