Datavideo TLM-170L 17.3" 3G-SDI Full HD LCD Desktop Monitor

Datavideo TLM-170L 17.3" 3G-SDI Full HD LCD Desktop Monitor

DATTLM-170L

$999.00 USD
$999.00 USD
Sale Sold out

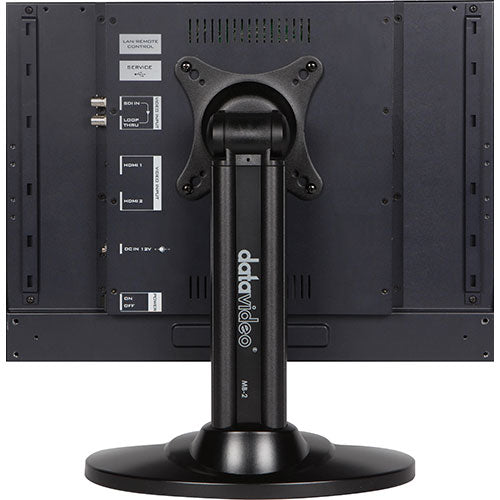

Datavideo TLM-170L 17.3" 3G-SDI Full HD LCD Desktop Monitor

Datavideo TLM-170L is a full featured 7.3-inch 3G-SDI Full HD LCD Desktop monitor that supports 3G/HD/SD, with a 1920x1080 panel resolution. The TLM-170L features multiple input and output options, including 3G/HD/SD loop through. This is a table mount LCD monitor.

TLM-170L Features:

  • 17.3" Full HD Desktop Monitor
  • Supports 3G/HD/SD/ 1920x1080 panel resolution
  • Supports multiple input and output configurations
  • 1 x 3G/HD/SD-SDI, 2 x HDMI input: 1 x 3G/HD/SD-SDI loop through

    • TLM-170L 17.3" 3G-SDI Full HD Monitor Specifications:

  • Screen: 17.3" LED Backlit
  • Chassis: Table Mount
  • Resolution: 1920x1080
  • Viewing Angle: (H) +70/-70°, (V) +60/-60°
  • Luminance/Contrast: 300cd/m², 400:1
  • Video Inputs: 1x 3G/HD/SD-SDI, 2x HDMI
  • Loop Through: 1x 3G/HD/SD-SDI
  • Supported Input Resolutions:
    1080p(23.98/24SF/24/25/29.97/30/50/59.95/60Hz)
    1080i(50/59.94/60Hz)
    720p(50/59.94/60Hz)
    576i(PAL), 480i(NTSC)
  • Aspect Ratio: 16:9, 4:3
  • Tally LED: Live (Red), Cued (Green>
  • Audio In/Out: Embedded Audio on SDI and HDMI
  • Special Features: 3G-SDI Support, Blue Only, Safe Frame,Pixel Zoom up to 8x
  • Dimension (LxWxH): 403 x 305 x 41 mm
  • Weight: 4.1 kg
  • Operating Temp. Range: 0~40 °C
  • Power: DC 12V, 16W

    • Whats in the Box:1 x TLM-170l product

  • 1 x AD Switch DC 12V
  • 1 x Monitor Stand
  • 2x Velcro
    •
