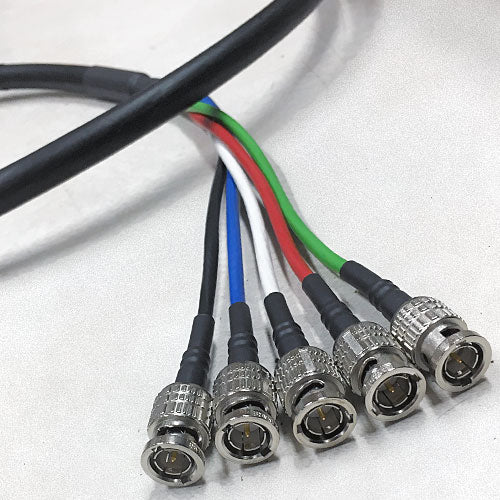

FLEXYGY Slim 5-Channel HD-SDI / 3G-SDI Video BNC Cable 125 FT

FLEXYGY Slim 5-Channel HD-SDI / 3G-SDI Video BNC Cable 125 FT

305V0851-BB-125

$447.10 USD
$447.10 USD
Sale Sold out
FLEXYGY Slim 5-Channel HD-SDI / 3G-SDI Video BNC Cable 125 FT

Flexygy Slim 5-Channel HD-SDI / 3G-SDI Video Snakes are made with outstanding Sommer Cable Transit 5 HD 23AWG Extra-Flexible video cable and Canare HD BNC Connectors.

These Flexygy cables are designed for transmitting 3G-SDI HD video signals in lengths up to 200 feet and HD-SDI signals up to 393 feet!

Suitable Applications:

  • Studios
  • Mobile Trucks
  • Rental & Staging
  • Installations

    • Features and Specifications:

  • Assembled with Sommer Cable Transit HD 5-Channel Video Cable
  • 5 BNC Male to 5 BNC Male, True 75-ohm Canare HD Connectors
  • Conductors: 23 AWG Solid OFC Oxygen Free Copper
  • Double Shield: Copper braiding tin-plated 90% + AL / PT-foil
  • Conductor Insulation: Gas-injected Foam / Skin-PE for extremely low loss
  • Cable O.D.: 0.5433 in. (13.8 mm)
  • Nominal impedance: True 75 ohms
  • Max HD-SDI Distance: SMPTE 292M 1.5 Gb/s - 393 FT (120 Meter)
  • Max 3G-SDI Distance: SMPTE 424M 3.0 Gb/s - 200 FT (60 Meter)
  • Jacket color: Black
    •
