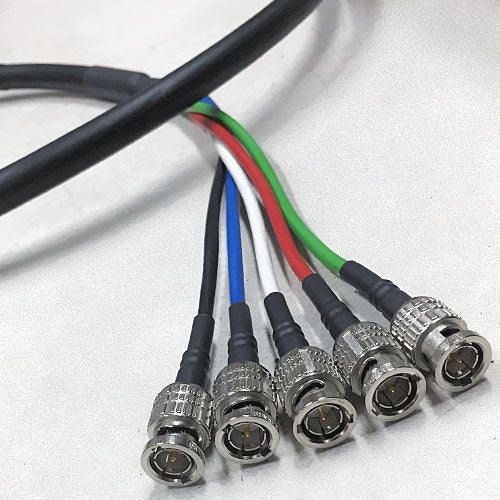

FLEXYGY Slim 5-Channel HD-SDI / 3G-SDI Video BNC Cable 75 FT
FLEXYGY Slim 5-Channel HD-SDI / 3G-SDI Video BNC Cable 75 FT
SKU:305V0851-BB-075
Regular price
$301.39 USD
Regular price
Sale price
$301.39 USD
FLEXYGY Slim 5-Channel HD-SDI / 3G-SDI Video BNC Cable 75 FTStudios Mobile Trucks Rental & Staging Installations Assembled with Sommer Cable Transit HD 5-Channel Video Cable 5 BNC Male to 5 BNC Male, True 75-ohm Canare HD Connectors Conductors: 23 AWG Solid OFC Oxygen Free Copper Double Shield: Copper braiding tin-plated 90% + AL / PT-foil Conductor Insulation: Gas-injected Foam / Skin-PE for extremely low loss Cable O.D.: 0.5433 in. (13.8 mm) Nominal impedance: True 75 ohms Max HD-SDI Distance: SMPTE 292M 1.5 Gb/s - 393 FT (120 Meter) Max 3G-SDI Distance: SMPTE 424M 3.0 Gb/s - 200 FT (60 Meter) Jacket color: Black
Flexygy Slim 5-Channel HD-SDI / 3G-SDI Video Snakes are made with outstanding Sommer Cable Transit 5 HD 23AWG Extra-Flexible video cable and Canare HD BNC Connectors.
These Flexygy cables are designed for transmitting 3G-SDI HD video signals in lengths up to 200 feet and HD-SDI signals up to 393 feet!
Suitable Applications:
Features and Specifications:
