Hannay AVF-18C Broadcast Fiber Optic Cable Reel w/ Casters

Hannay AVF-18C Broadcast Fiber Optic Cable Reel w/ Casters

HANAVF-18C

$790.00 USD
$790.00 USD
Sale Sold out

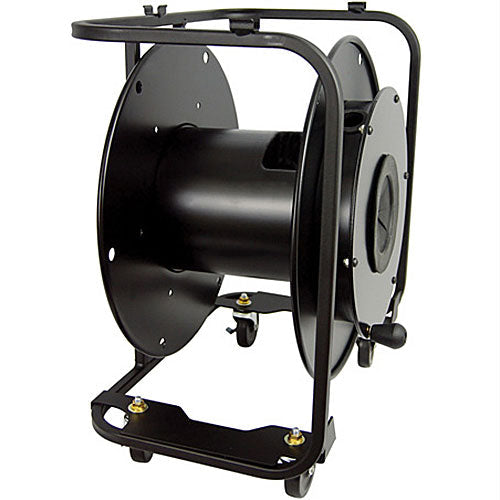

Hannay AVF-18C Broadcast Fiber Optic Cable Reel, with Casters

For use with 3mm to 9.2mm or larger broadcast fiber optic cable

Hannay Reels has introduced new Broadcast Fiber Optic Series Reels, designed specifically for the unique needs of Broadcast SMPTE, TAC and opticalCON cable. The metal reels in the series are lightweight and stand up to everyday wear and tear better than plastic reels.

AVF-14 Features and Specifications:

  • Durable aluminum/steel construction, under 25 lbs.
  • Frame style with clips allow multiple reels to be stacked
  • Includes set of heavy-duty locking caster wheels, 2 locking, and 2 non-locking
  • Designed for Tactical Fiber and Hybrid Fiber cable types
  • Quality construction designed for harsh outdoor environments
  • Non-reflective black matte finish is standard
  • External and/or internal drum storage with protective rubber grommet for easy access to lead out cable, while keeping dirt and debris out
  • Crank handle permanently attached to disc
  • Equipped with cam-lock drag brake system

    • Cable Capacity of Reel

  • Cable O.D. .118 in. (3 mm) - 9250 ft (2820 m)
  • Cable O.D. .157 in. (4 mm) - 5500 ft (1677 m)
  • Cable O.D. Tac 4 .236 in. (6 mm) - 2400 ft (732 m)
  • Cable O.D. Tac 12 .28 in. (7.1 mm) - 1600 ft (488 m)
  • Cable O.D. Tac 12 .3 in. (7.5 mm) - 1400 ft (427 m)
  • Cable O.D. SMPTE .36 in. (9.2 mm) - 1000 ft (302 m)
    •
